P026 handsfree microphone
- Make
- Fiat
- Model
- Ducato Factory Service Manual
- Year
- 2002–2006
- Section
- Various consumers › P026 handsfree microphone
Connectors and pin-outsP026 handsfree microphone

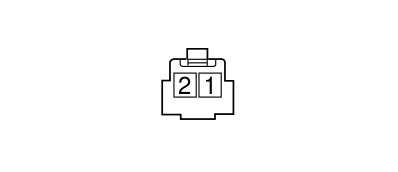

P026 HANDSFREE MICROPHONE
| Wiring | Colour |
|---|---|
| See 102 GPS/GSM/RADIO AERIAL BRIDGE | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,35 | HB | See D165 OPTIONAL DASHBOARD/OPTIONAL COURTESY LIGHT COUPLING | 2 | |
| 2 | 0,35 | SB | See D165 OPTIONAL DASHBOARD/OPTIONAL COURTESY LIGHT COUPLING | 3 | |
