Connectors and pin-outsP052 rear current socket

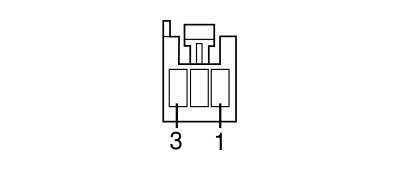

P052 REAR CURRENT SOCKET
| Wiring | Colour |
|---|---|
| See 24 RIGHT LONGITUDINAL | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | GN | See D172A RIGHT REAR/OPTIONAL DASHBOARD COUPLING (RIGHT LONGITUDINAL) | 7 | |
| 2 | 1,5 | RG | See D172A RIGHT REAR/OPTIONAL DASHBOARD COUPLING (RIGHT LONGITUDINAL) | 6 | |
| 3 | 1,5 | N | See C031 RIGHT REAR EARTH | 7 | |
