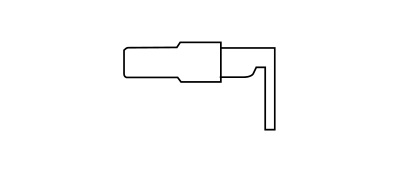

C002 BATTERY EARTH ON ENGINE
| Wiring | Colour |
|---|---|
| See 40 BATTERY NEGATIVE | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 50 | R | X | See A001B BATTERY (BATTERY NEGATIVE) | ||
| See C003 BATTERY EARTH ON BODYSHELL | |||||
