Connectors and pin-outsC014 electric steering front earth

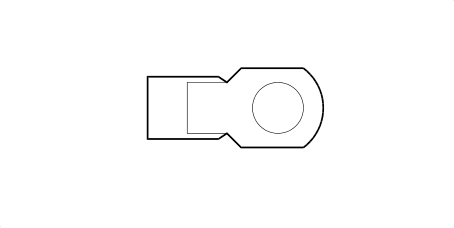

C014 ELECTRIC STEERING FRONT EARTH
| Wiring | Colour |
|---|---|
| See 25 REAR |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 10,0 | N | See M086A ELECTRIC STEERING CONTROL UNIT (REAR) | B | ||
