G040 boot courtesy light
- Make
- Fiat
- Model
- Grande Punto Factory Service Manual
- Year
- 2005–2012
- Section
- Interior lights › G040 boot courtesy light
Connectors and pin-outsG040 boot courtesy light

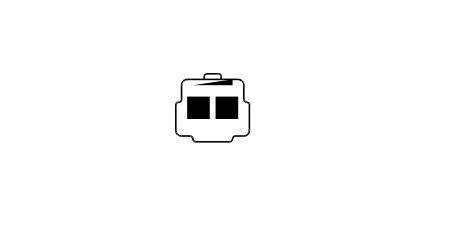

G040 BOOT COURTESY LIGHT
| Wiring | Colour |
|---|---|
| See 25 REAR | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | GN | See N057 BOOT LOCK GEARED MOTOR | 1 | ||
| 2 | GR | See M001E BODY COMPUTER (REAR) | 28 | ||
