J030 engine fan speed 1 relay

Make

Fiat

Model

Grande Punto Factory Service Manual

Year

2005–2012

Section

Relays › J030 engine fan speed 1 relay

Connectors and pin-outsJ030 engine fan speed 1 relay

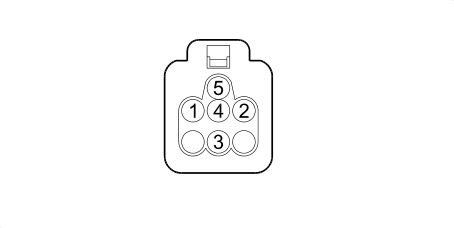

J030 ENGINE FAN SPEED 1 RELAY

1.9 Multijet · Automatic air conditioning, Manual air conditioning

Wiring	Colour
See 10 RADIATOR CROSSMEMBER	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	4	RN	X	See B001C JUNCTION UNIT (RADIATOR CROSSMEMBER)	23
				See J030 ENGINE FAN SPEED 1 RELAY	3
2	1	BR	X	See B001C JUNCTION UNIT (RADIATOR CROSSMEMBER)	8
				See J029 ENGINE FANS REMOTE CONTROL RELAY	2
3	4	RN	X	See B001C JUNCTION UNIT (RADIATOR CROSSMEMBER)	23
				See J030 ENGINE FAN SPEED 1 RELAY	1
5	4	HR		See O012 ENGINE FAN 2 ADJUSTMENT RESISTANCE	1
