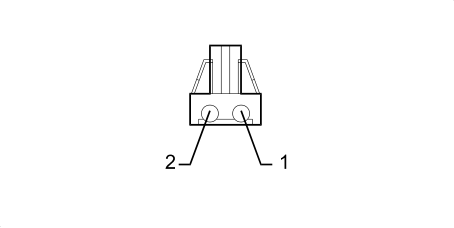

Q030 DRIVER'S SIDE BAG

Q030A – Left seat

Wiring	Colour
See 36 LEFT SEAT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		L		See D070C DRIVER'S SEAT COUPLING (REAR)	1
2		M		See D070C DRIVER'S SEAT COUPLING (REAR)	2

Q030B – Left seat

Wiring	Colour
See 36 LEFT SEAT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
		N		See D070C DRIVER'S SEAT COUPLING (REAR)	3
