General informationEngine marking position

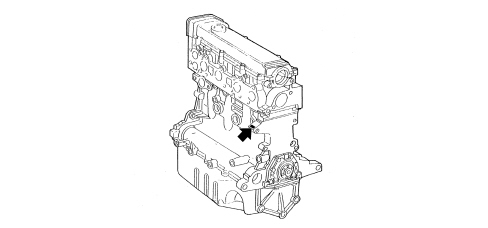

ENGINE MARKING POSITION

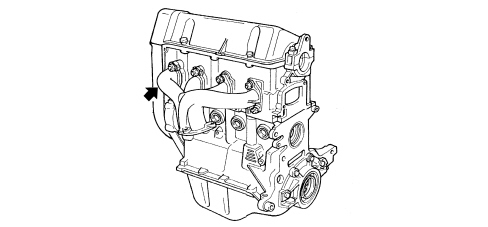

1.2 8v -1.4 8v engines
The engine marking is stamped on the cylinder block/crankcase, timing side, near the exhaust manifold mounting.

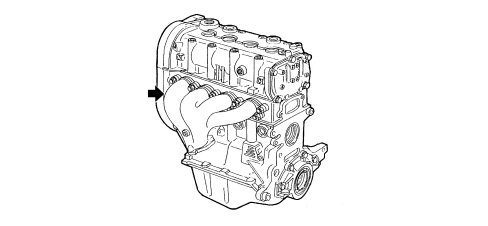

1.4 16v Engine
The engine marking is stamped on the cylinder block/crankcase, timing side, near the exhaust manifold mounting.

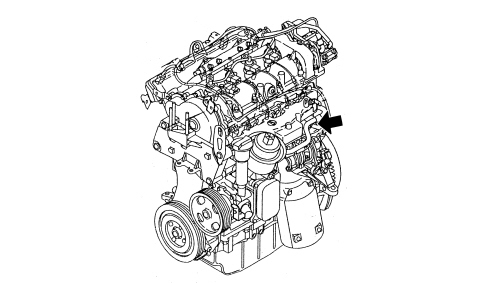

1.3 Multijet Engine
The engine marking is stamped on the cylinder block/crankcase, gearbox side.
1.9 Multijet Engine
The engine marking is stamped on the cylinder block/crankcase, gearbox side.
