HEATER RADIATOR - R+R

Operation 5020A50 · CASING AND COMPONENTS

Removing

- Work on the left side of the dashboard.

Op. 7040A37 FUSE BOX COVER IN INSTRUMENT PANEL - R.R

Op. 7040A30 LEFT LOWER DASHBOARD TRIM - R.R.

Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.

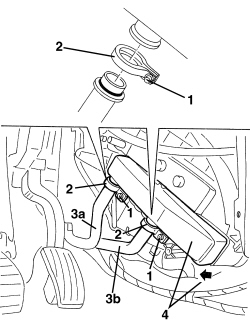

1. Undo the bolts for the pipe connector bands.

2. Open the bands slightly.

3. Disconnect the pipes (3a) and (3b) from the heater radiator.

4. Extract the heater radiator

Refitting

- Check that the heater radiator is not damaged.

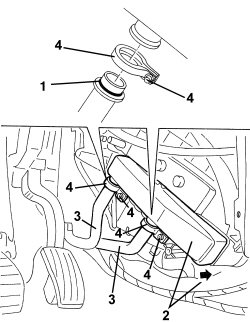

1. Replace the seals for the pipes.

2. Fit the heater radiator in position.

3. Connect the pipes to the heater radiator.

4. Fit the bands and tighten the bolts.

Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.

Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

Op. 7040A30 LEFT LOWER DASHBOARD TRIM - R.R.

Op. 7040A37 FUSE BOX COVER IN INSTRUMENT PANEL - R.R
