RECOMMENDATIONS

The power and torque curves illustrated can be obtained with the engine overhauled and run in (50 hours operation) without a fan and with an exhaust silencer and air filter fitted, at sea level.

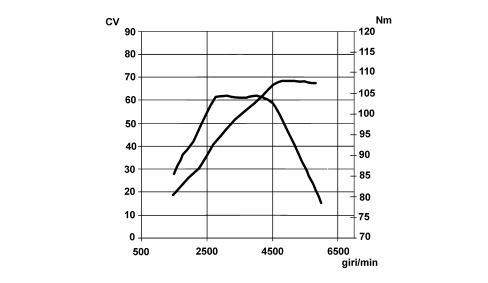

1.2 8v engine

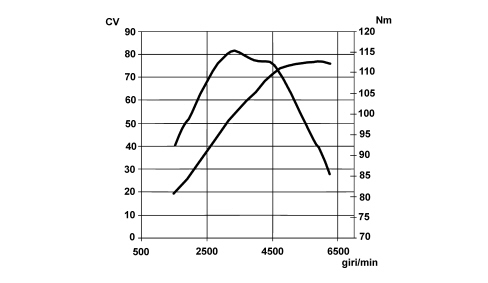

1.4 8v engine

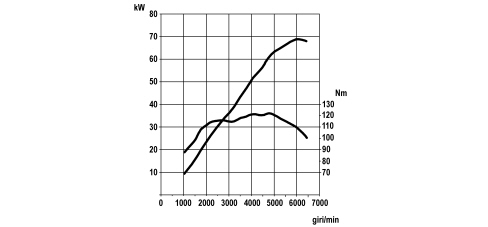

1.4 16v Engine

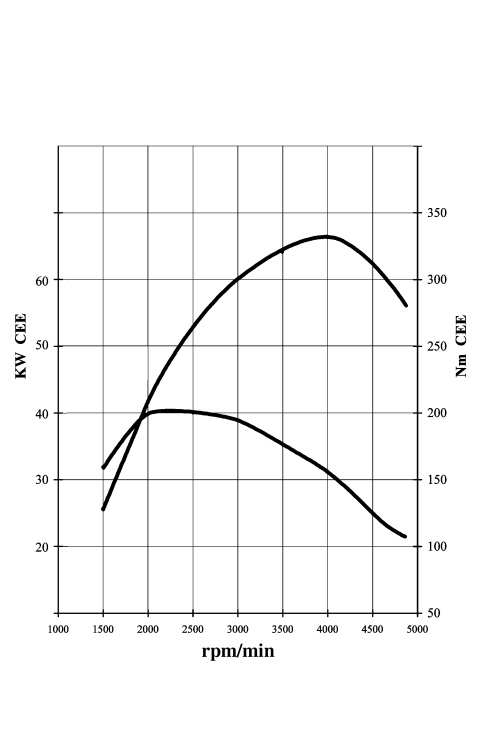

1.3 Multijet 75 bhp engine

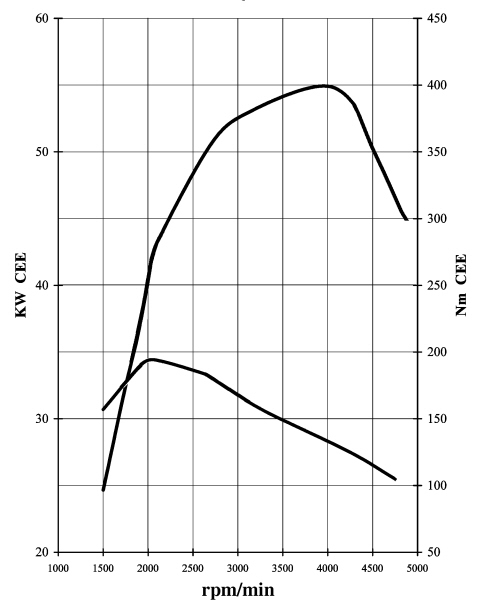

1.3 Multijet 90 bhp engine

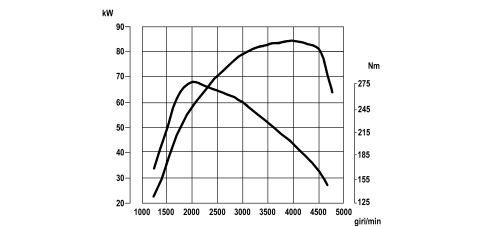

1.9 Multijet 120 bhp engine

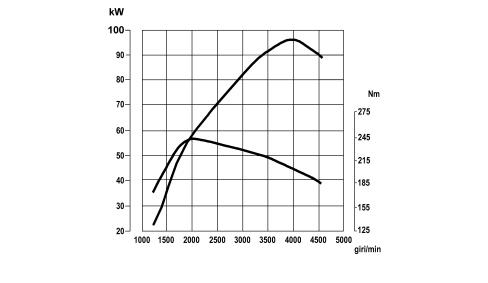

1.9 Multijet 130 CV engine
