Rear power point - r r

Operation 7065C85 · Accessories and decorations

Removing

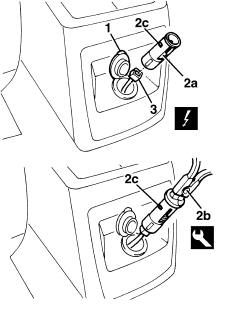

1. Release and open the cover.

2. Withdraw the cigarette lighter seating (2a) using the special tool (2b).

The tool must engage in the recesses (2c) in the cigarette lighter seating.

3. Disconnect the electrical connection.

1. If necessary, remove the ring nut and cover (1a), releasing the retainer (1b) from the housing (1c).

Refitting

Check that the cigarette lighter seating is undamaged.

Position the ring nut and cover attaching the retainer in the housing.

Connect the electrical connection.

Fit the cigar lighter housing.

Check that the current socket is working properly.
