Electrical equipmentBattery fastening belt/retainers - replace

Battery fastening belt/retainers - replace

Operation 5530B60 · Battery and leads

Removing

Open the bonnet lid.

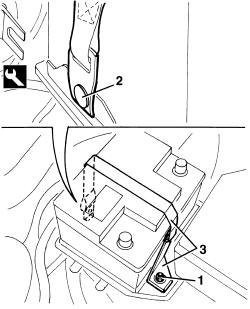

1. Undo the nut.

2. Undo the retaining buttons using the special tool

	Name	Country
2	Scraper blade	1.878.077.000

3. Remove the belt.

Refitting

Check that the belt is not damaged.

Fit the belt, engage the retaining button and tighten the nut.

	Fastening	Component	Ø	Value (daNm)
	Nut	BATTERY RETAINING STRAP	M8
