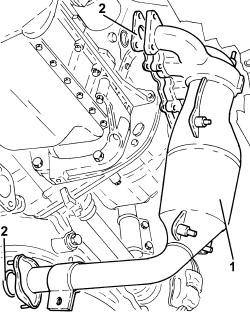

Exhaust manifold with catalytic converter - r r

Operation 1072C16 · Exhaust manifolds

1.4 16v

Removing

Position the vehicle on the ramp

Ensure that the ignition key is in the OFF position, then disconnect the negative battery terminal (-).

Proceed with removal - 1048A10 air cleaner filtering element - replace

Proceed with removal - 1072C44 exhaust manifold heat shield on bulkhead - r+r

1. Disconnect the electrical connection for the front Lambda sensor for the catalytic converter.

2. Disconnect the electrical connection for the rear Lambda sensor for the catalytic converter.

3. Undo the nuts fixing the exhaust manifold and catalytic converter to the cylinder head.

1. Undo the nuts fixing the exhaust manifold and catalytic converter to the exhaust silencer.

2. Undo the bolt fixing the exhaust manifold and catalytic converter mounting bracket to the manual gearbox/engine connecting bracket.

1. Remove the exhaust manifold with catalytic converter.

2. Remove the gaskets.

Refitting

Refit the catalytic converter in its seat complete with gaskets.

1. Tighten the bolt fixing the exhaust manifold and catalytic converter mounting bracket to the manual gearbox/engine connecting bracket to the specified torque.

2. Tighten the nuts fixing the exhaust manifold and catalytic converter to the exhaust silencer to the recommended torque.

1. Tighten the nuts fixing the exhaust manifold with catalytic converter to the cylinder head to the recommended torque.

2. Connect the electrical connection for the rear Lambda sensor for the catalytic converter.

3. Connect the electrical connection for the front Lambda sensor for the catalytic converter.

Proceed with refitting - 1072C44 exhaust manifold heat shield on bulkhead - r+r.

Proceed with refitting - 1048A10 air cleaner filtering element - replace.

Connect the negative (-) battery terminal.

Remove the car from the ramps.
