21 Gearbox and differentialFitting

Fitting

A hand fitting a pin into a rod on the gearbox assembly, with selector forks visible.

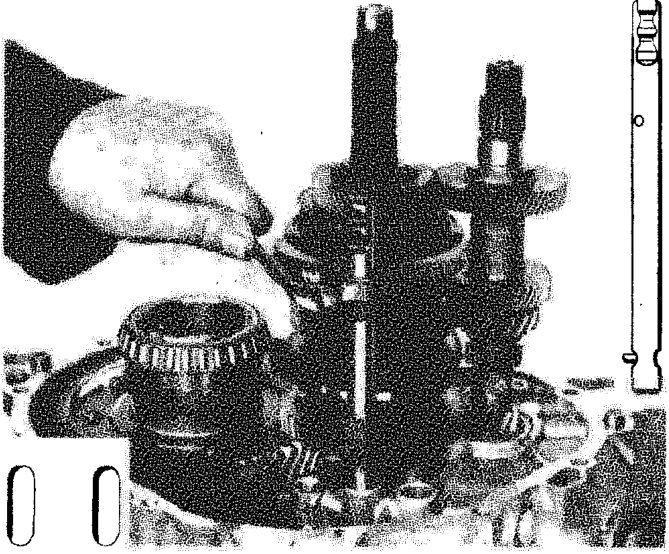

Fitting 3rd and 4th speed pawls, rod and selector fork

Position the pin in the rod before fitting it in its housing.

A hand moving a control rod up and down on the gearbox assembly, indicated by double-headed arrows.

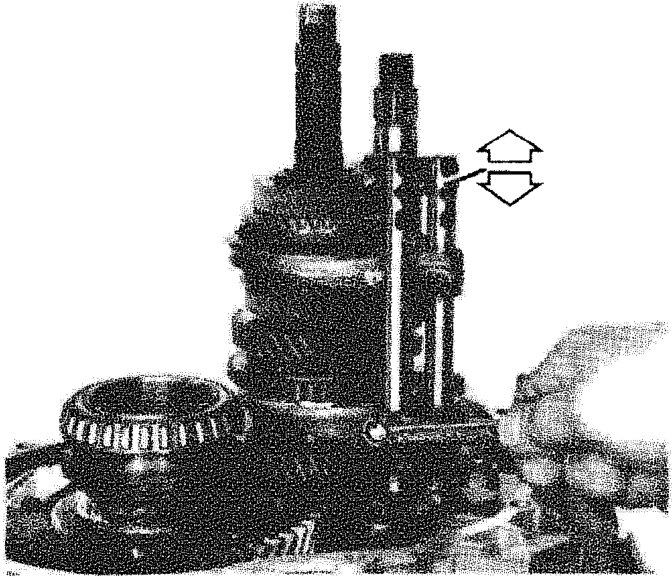

Fitting 1st and 2nd speed control rod and selector fork

To facilitate fitting, move the 3rd-4th speed control rod up and down as shown by the arrows.

A hand inserting a control rod into the gearbox assembly, with double-headed arrows indicating movement.

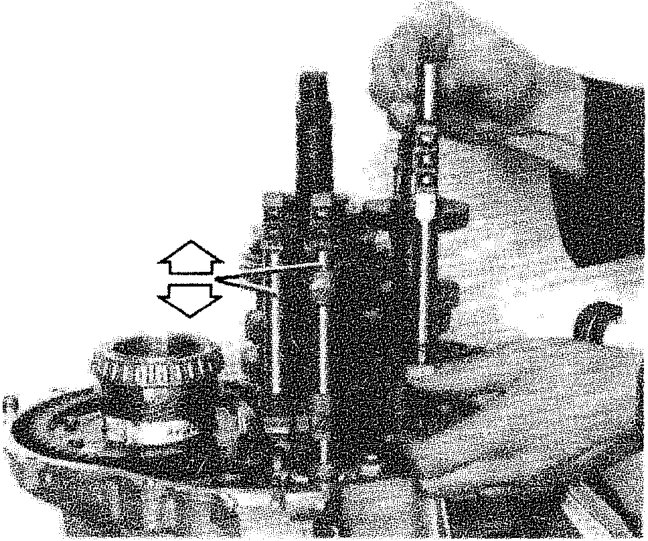

Fitting 5th speed and reverse control rod and selector fork

To facilitate fitting, move the 3rd-4th and 1st-2nd speed control rods up and down as shown by the arrows.

The gearbox casing being fitted onto the bell housing.

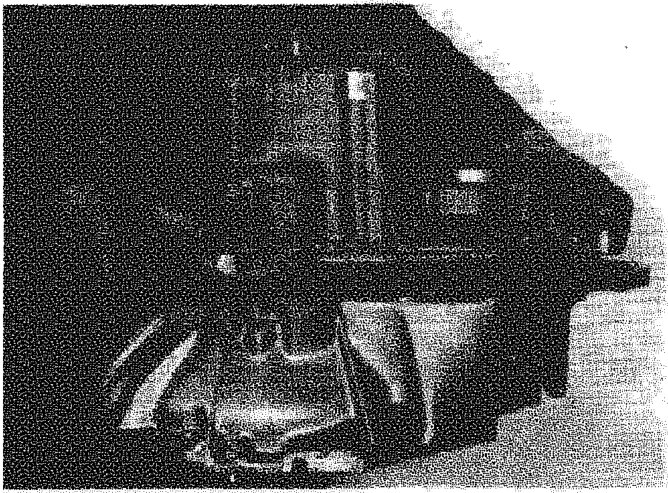

Fitting gearbox casing on bell housing
