21 Gearbox and differentialVariants for 4 speed gearbox

VARIANTS FOR 4 SPEED GEARBOX

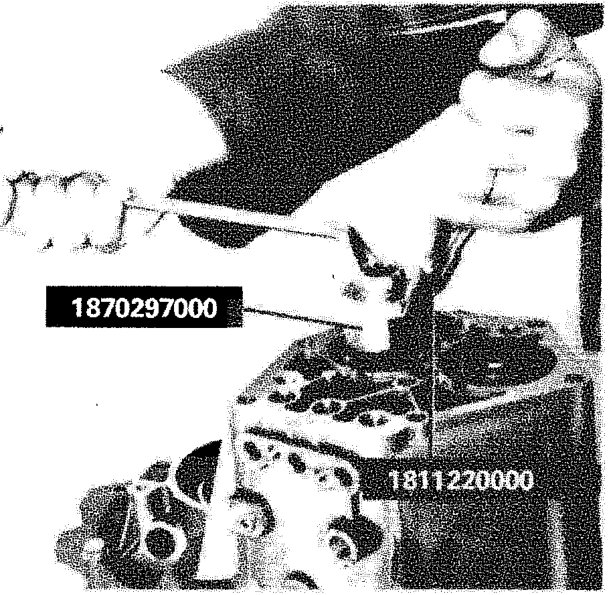

Removing circlip and Belleville washers from lay shaft

Hands using tool 1870297000 to remove a circlip from the gearbox assembly, part number 1811220000 visible on the casing.

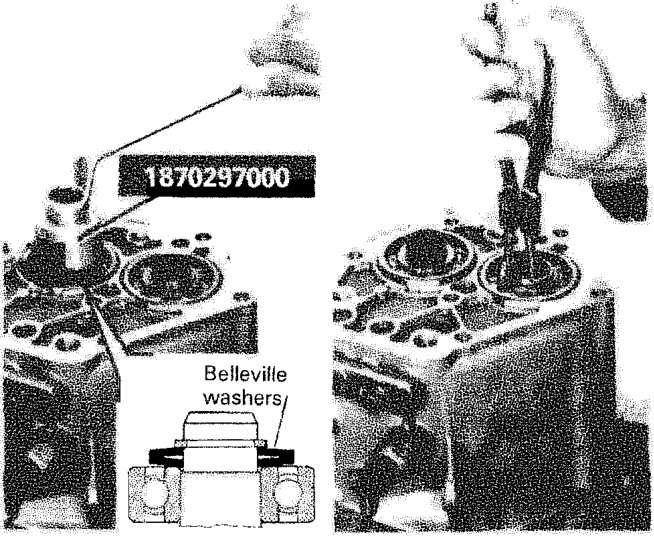

Fitting Belleville washers on lay shaft and circlips on main and lay shafts

Tool 1870297000 being used on the gearbox; an inset diagram shows the arrangement of Belleville washers. A hand uses pliers to fit a component on the right side of the assembly.
