21 Gearbox and differentialFitting · page 1 of 2

Fitting

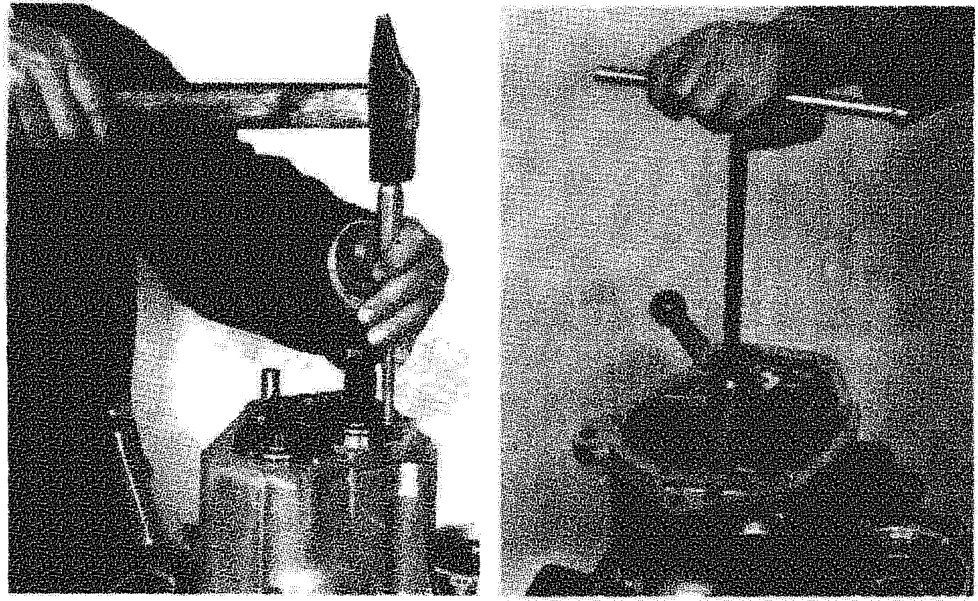

Fitting bearings for main and lay shafts and fixing intermediate cover

Two images showing the fitting of bearings using a hammer and drift, and tightening a component with a T-handle tool.

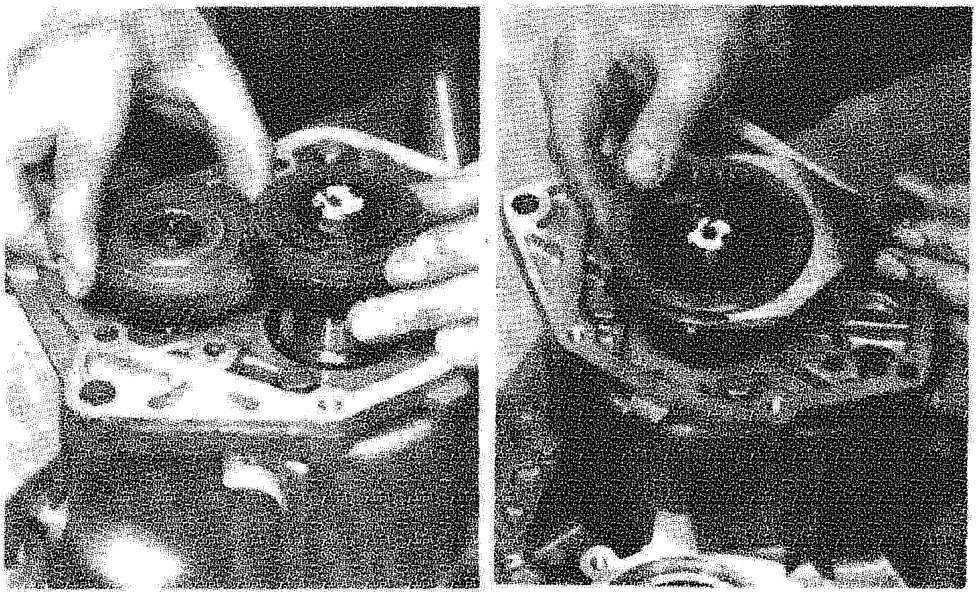

Fitting 5th speed gears, hub, selector fork and sleeve

Two images showing hands positioning 5th speed gears and related components into the gearbox casing.

11,8 daNm

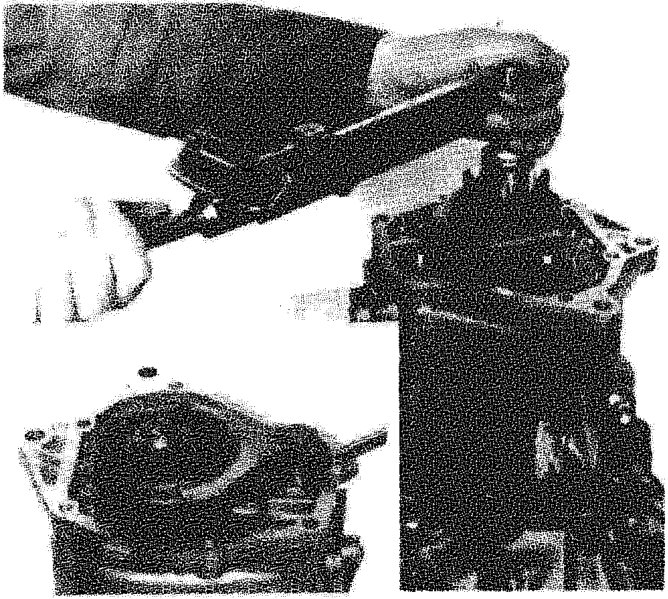

Tightening ring nuts fixing 5th speed gears

Two images showing the tightening of ring nuts on the 5th speed gear assembly using a torque wrench.

NOTE The ring nuts securing the gears must be staked after fitting. Consequently, they must be replaced each time they are removed
