21 Gearbox and differentialFitting · page 2 of 2

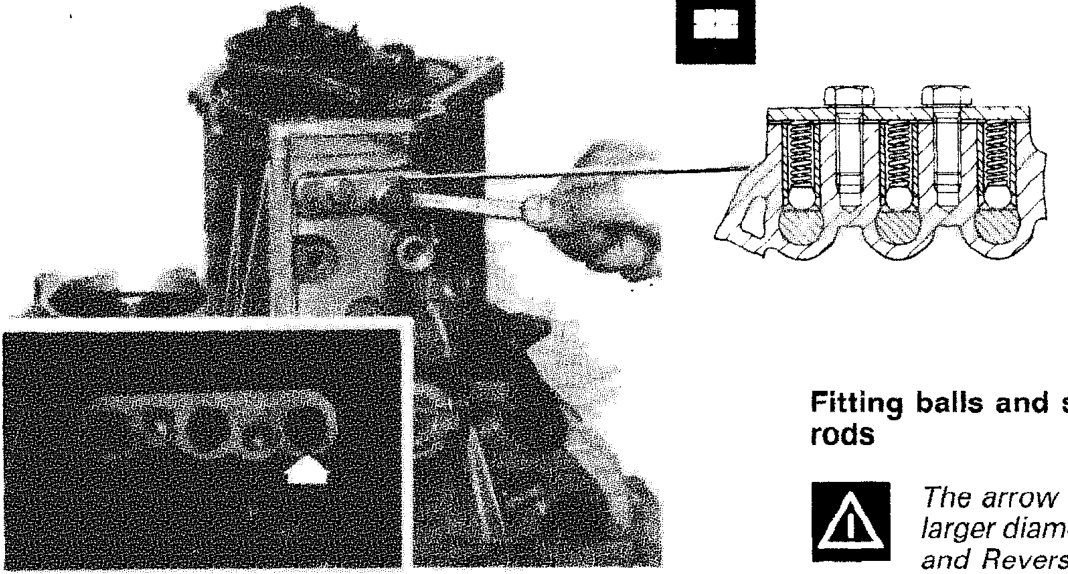

Fitting balls and springs for gear control rods
The arrow shows the spring with the larger diameter fitted on the 5th speed and Reverse control rod

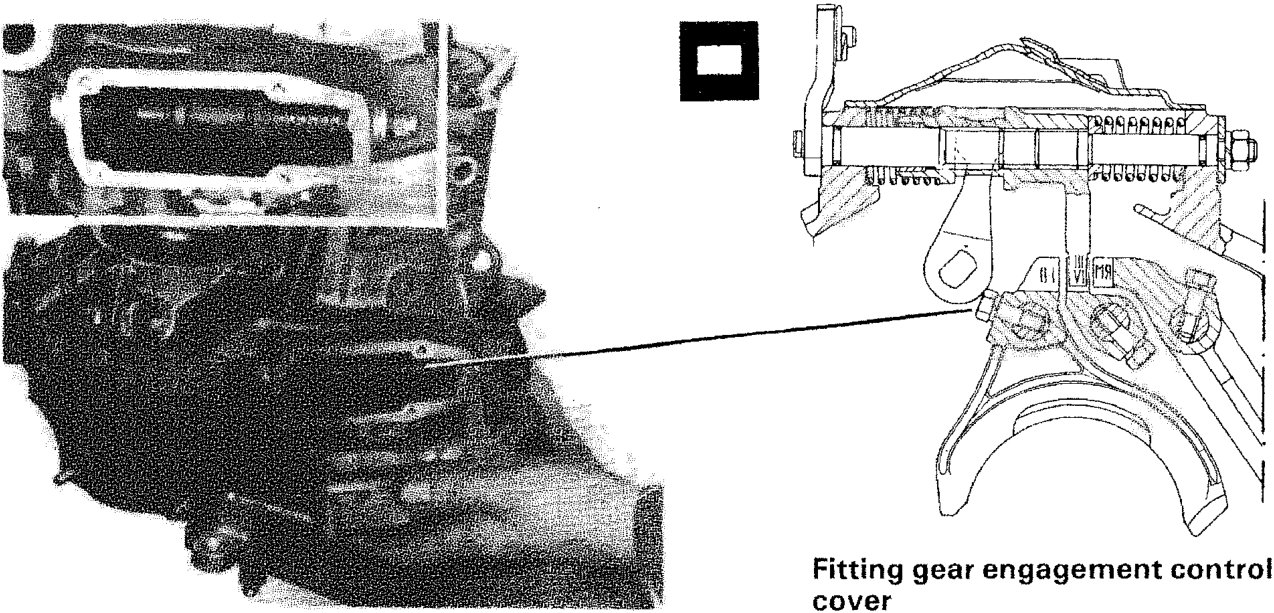

Fitting gear engagement control shaft and cover

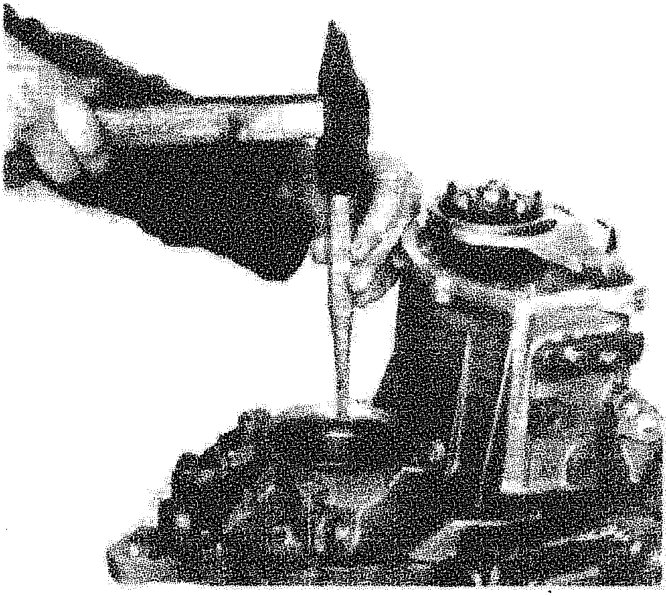

Fitting differential casing bearing outer race
