44 Suspension and wheelsTrack control arm · page 1 of 2

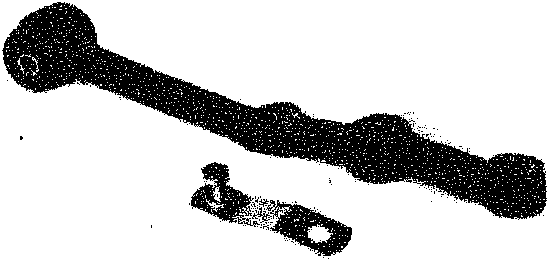

TRACK CONTROL ARM
Checking
Check that the track control arm and the bush are not distorted; if this not the case, replace the complete track control arm.

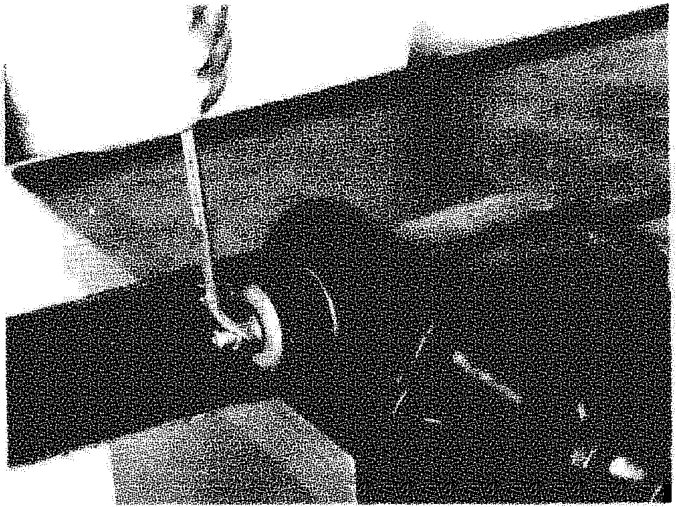

REACTION ROD
Removing-refitting
When removing the reaction rod, make a note of the number of shims between the stop at the end of the rod and the flexible mounting to avoid altering the caster angle when refitting.
Checking
Check that the reaction rod is not distorted and that the flexible bushes are in good condition.
