44 Suspension and wheelsRemoving-refitting · page 1 of 4

REMOVING-REFITTING

Proceed as follows:

  • Position the vehicle on a lift
  • Remove the left front wheel
  • Loosen the nut fixing the constant velocity joint to the hub
  • Remove the items illustrated below:

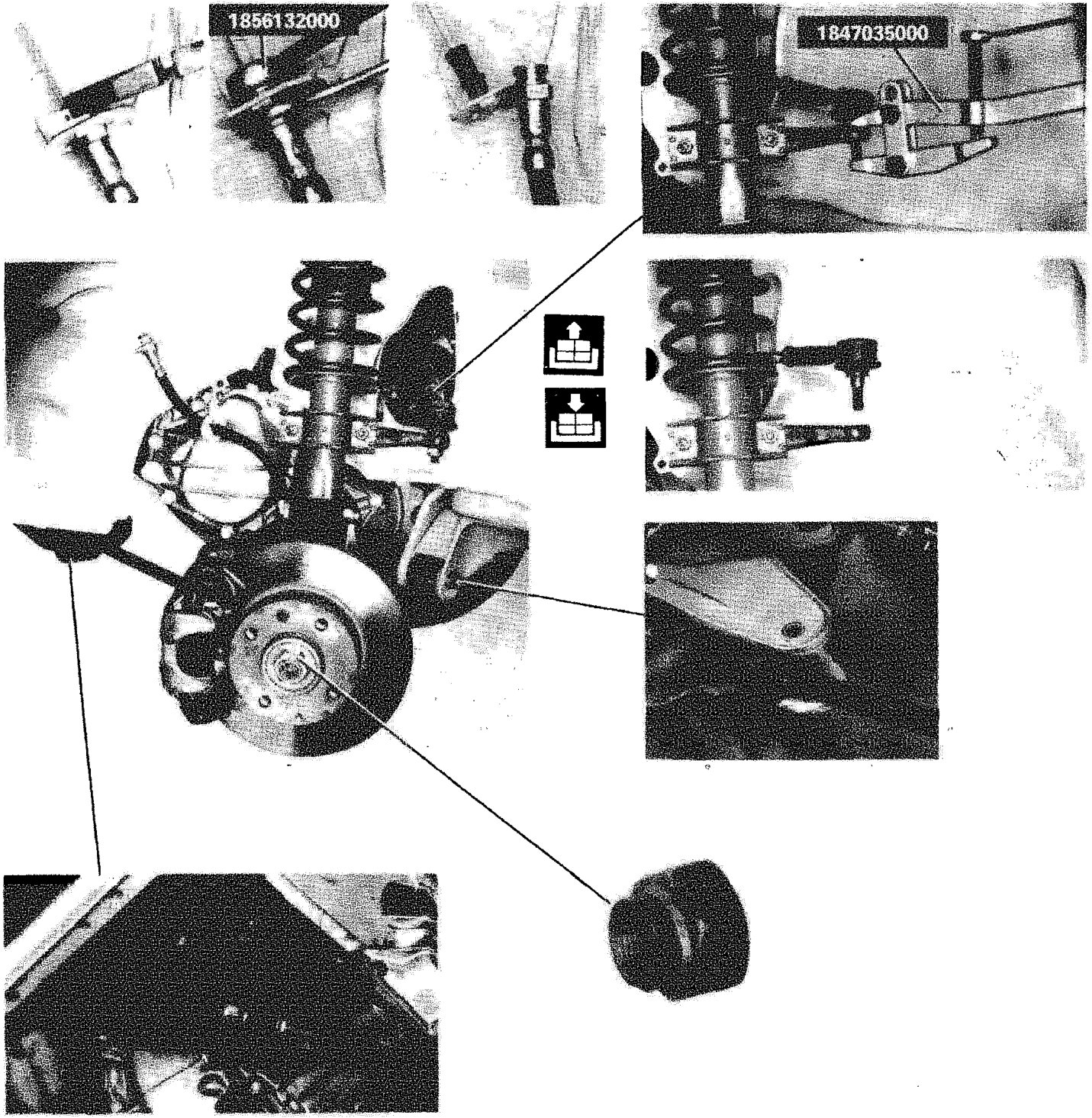

Diagram of front suspension assembly showing removal of components including constant velocity joint, tie rod end, brake disc, and shock absorber mount. Part numbers 1856132000 and 1847035000 are visible in callout boxes. Directional arrows indicate movement for disassembly.
