44 Suspension and wheelsRemoving-refitting · page 2 of 4
NOTE Before disconnecting the hub assembly from the constant velocity joint, fix the drive shaft to prevent it coming out of the differential internal casing.

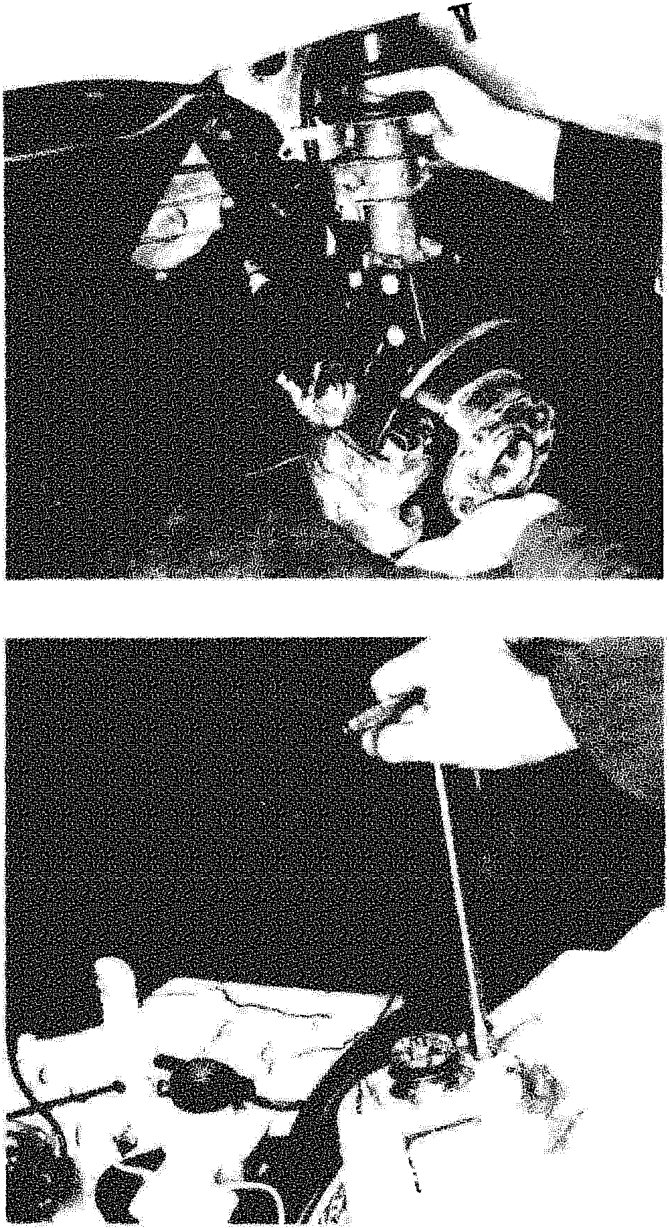

Disconnect the hub assembly from the constant velocity joint.
Remove the nuts fixing the shock absorber assembly to the turret

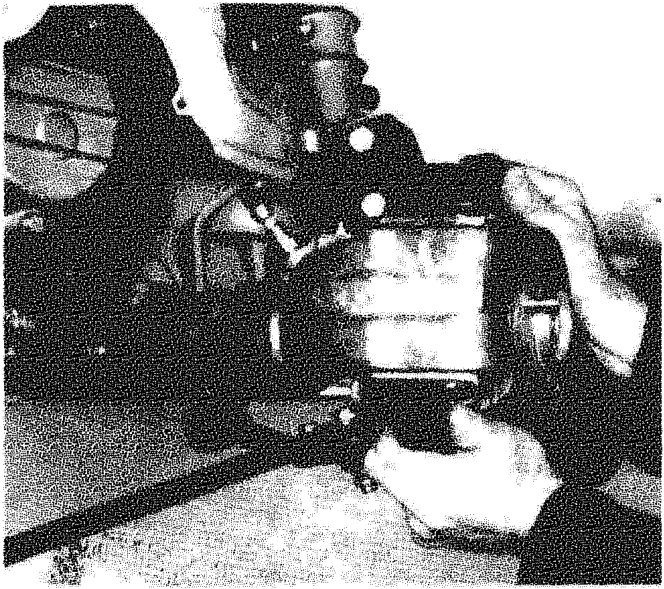

Remove the front suspension assembly
