44 Suspension and wheelsCoil springs

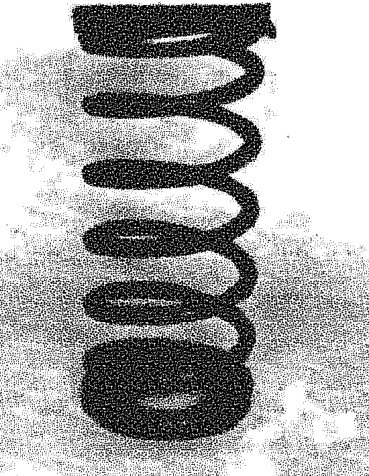

COIL SPRINGS
Checking
Ensure that there are no cracks or distortions wich might adversely affect its efficiency.
NOTE Coil springs are subdivided into two categories identifiable by a stripe of either yellow or green paint. Springs of the same category must be fitted.

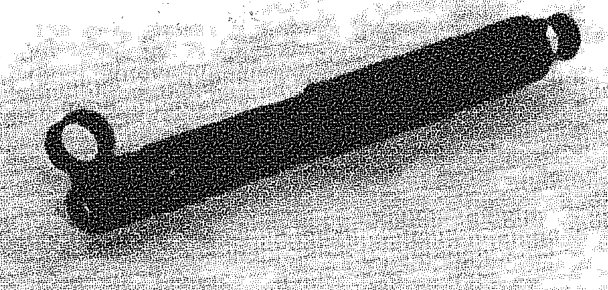

SHOCK ABSORBERS
Checking
If there appears to be anything wrong with the shock absorber, it is always replaced in one piece.

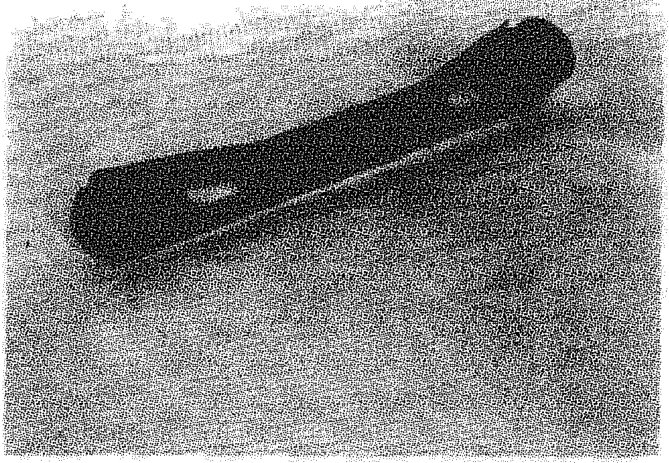

REACTION RODS
Checking
Check that the rod is not distorted and that the flexibile bushes are in a good condition or else the complete rod has to replaced.
