44 Suspension and wheelsFitting · page 1 of 2

FITTING

NOTE When refitting, simply reverse the order of the operations carried out for the removal.

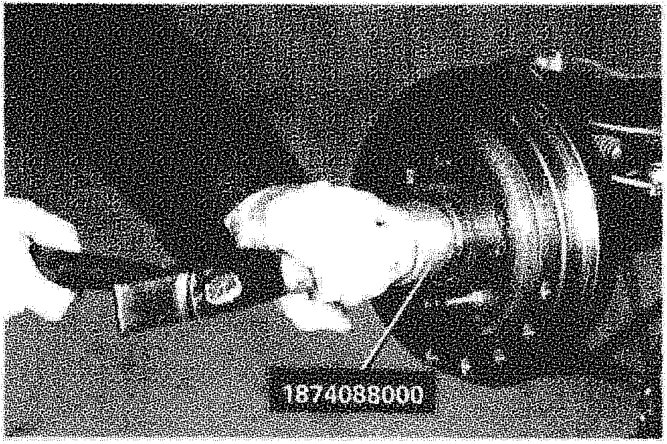

A hand using a tool to fit or remove a wheel hub cap

Fitting wheel hub cap

NOTE Smear TUTELA MR3 grease along the edge of the cap before fitting.

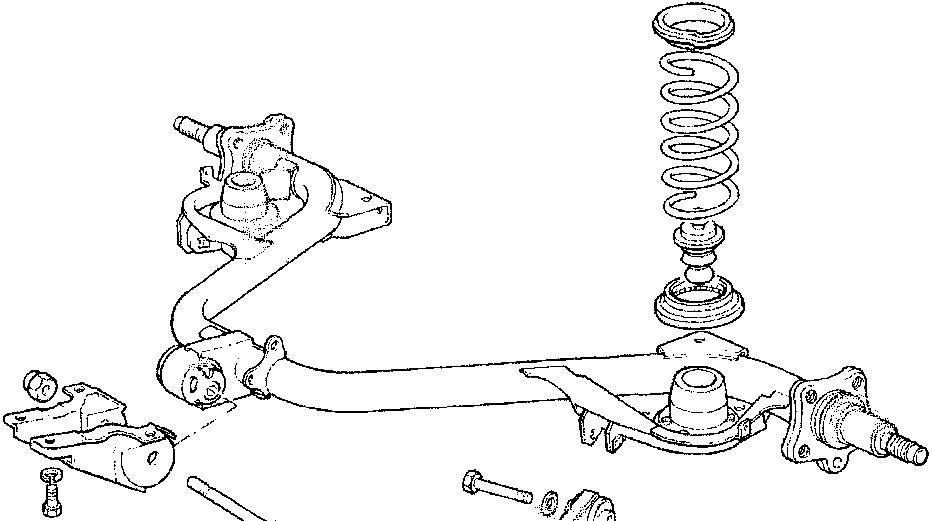

Rear suspension unit components

An exploded view diagram of the rear suspension unit showing the trailing arm, coil spring, shock absorber, and associated mounting hardware.
