00 Introduction and technical dataCabin version with platform · page 1 of 3

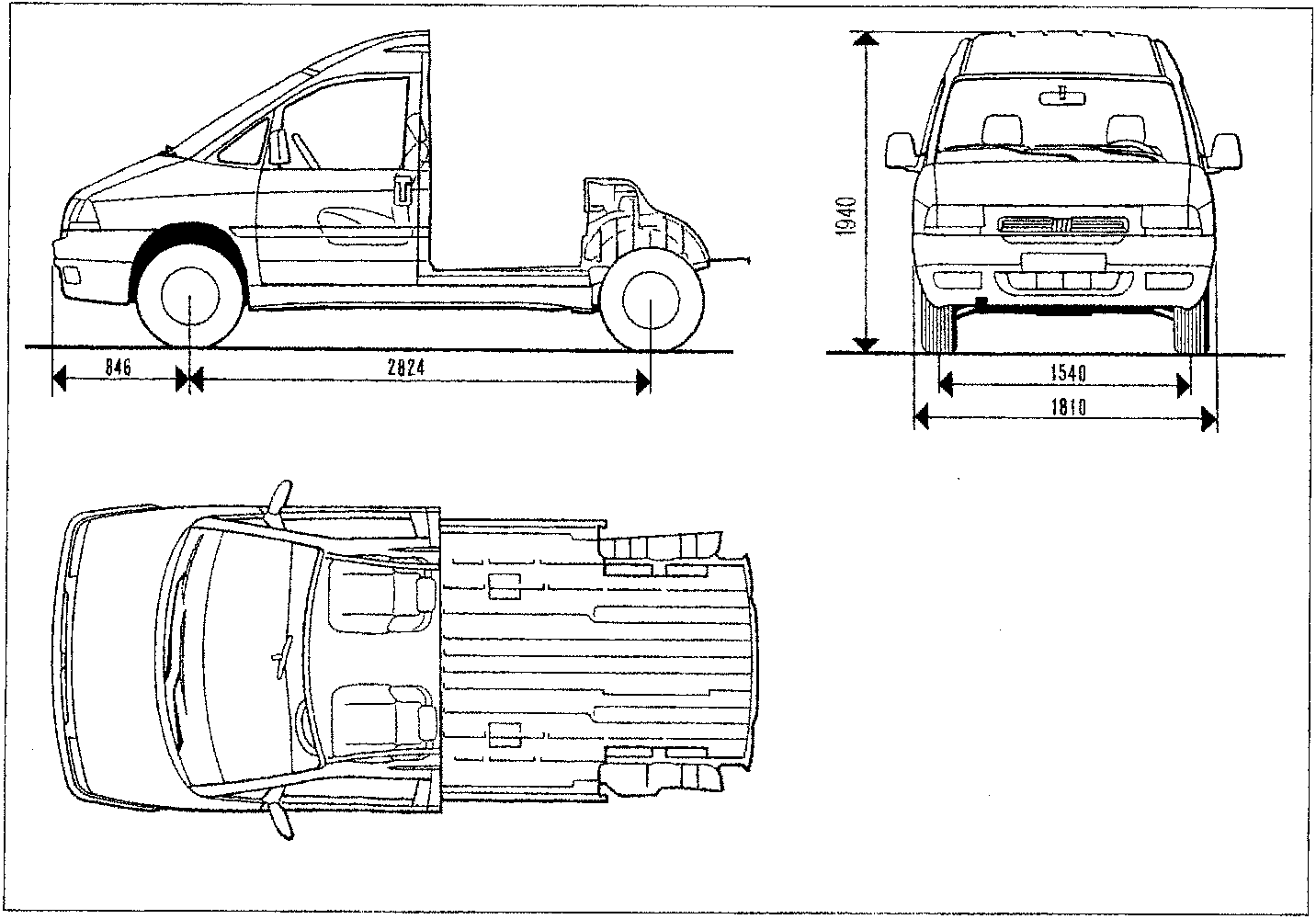

CABIN VERSION WITH PLATFORM
| 1581 SPI | 1905 D | 1905 TD | 1905 TD 900 kg | ||
|---|---|---|---|---|---|
| Vehicle kerb weight (with full tanks, spare wheel, tools and accessories) : | Kg | 1145 | 1195 | 1235 | 1260 |
| Payload including driver : | Kg | 990 | 995 | 985 | 1075 |
| Maximum permitted loads : - front axle: - rear axle: - total: |
Kg Kg Kg |
1230 1230 2135 |
1230 1230 2190 |
1230 1230 2220 |
1230 1300 2335 |
| Maximum loads on roof | Kg | - | - | - | - |
| Braked towable weight | Kg | 1100 | 1100 | 1300 | - |
| Unbraked towable weight | Kg | - | - | - | - |
| Max. load on ball (trailer braked) | Kg | 60 | 60 | 60 | - |
