00 Introduction and technical dataPanels/glazed version

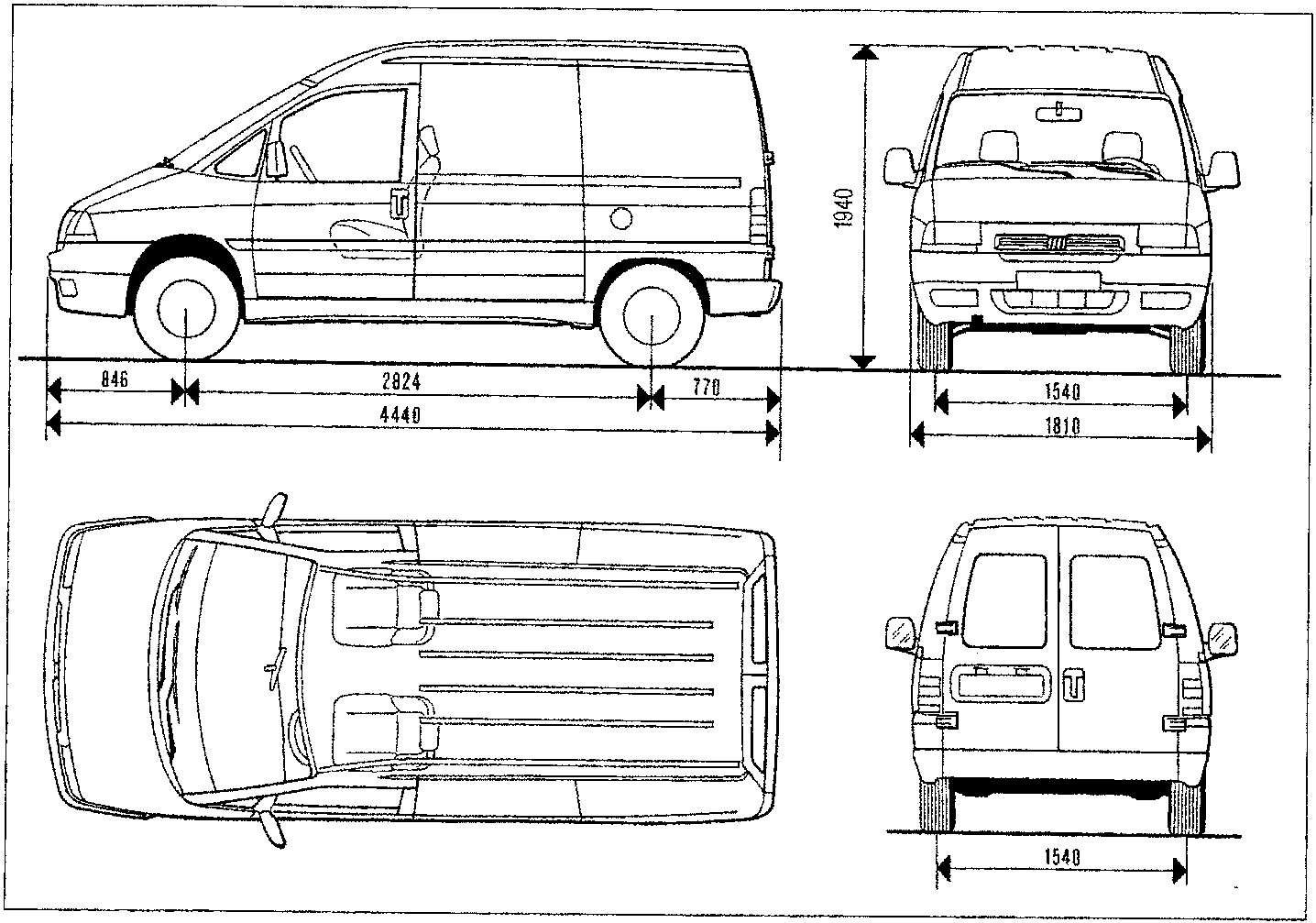

PANELS/GLAZED VERSION
| 1581 SPI | 1905 D | 1905 TD | 1905 TD 900 kg | |
|---|---|---|---|---|
| Vehicle kerb weight (with full tanks, spare wheel, tools and accessories) : Kg |
1320 | 1375 | 1405 | 1435 |
| Payload including driver : Kg |
815 | 815 | 815 | 900 |
| Maximum permitted loads : - front axle: - rear axle: - total: Kg Kg Kg |
1225 1230 2135 |
1225 1230 2190 |
1225 1230 2220 |
1230 1300 2335 |
| Maximum loads on roof Kg |
150 | 150 | 150 | 150 |
| Braked towable weight Kg |
1100 | 1100 | 1300 | 1300 |
| Unbraked towable weight Kg |
660 | 685 | 700 | 700 |
| Max. load on ball (trailer braked) Kg |
60 | 60 | 60 | 60 |
