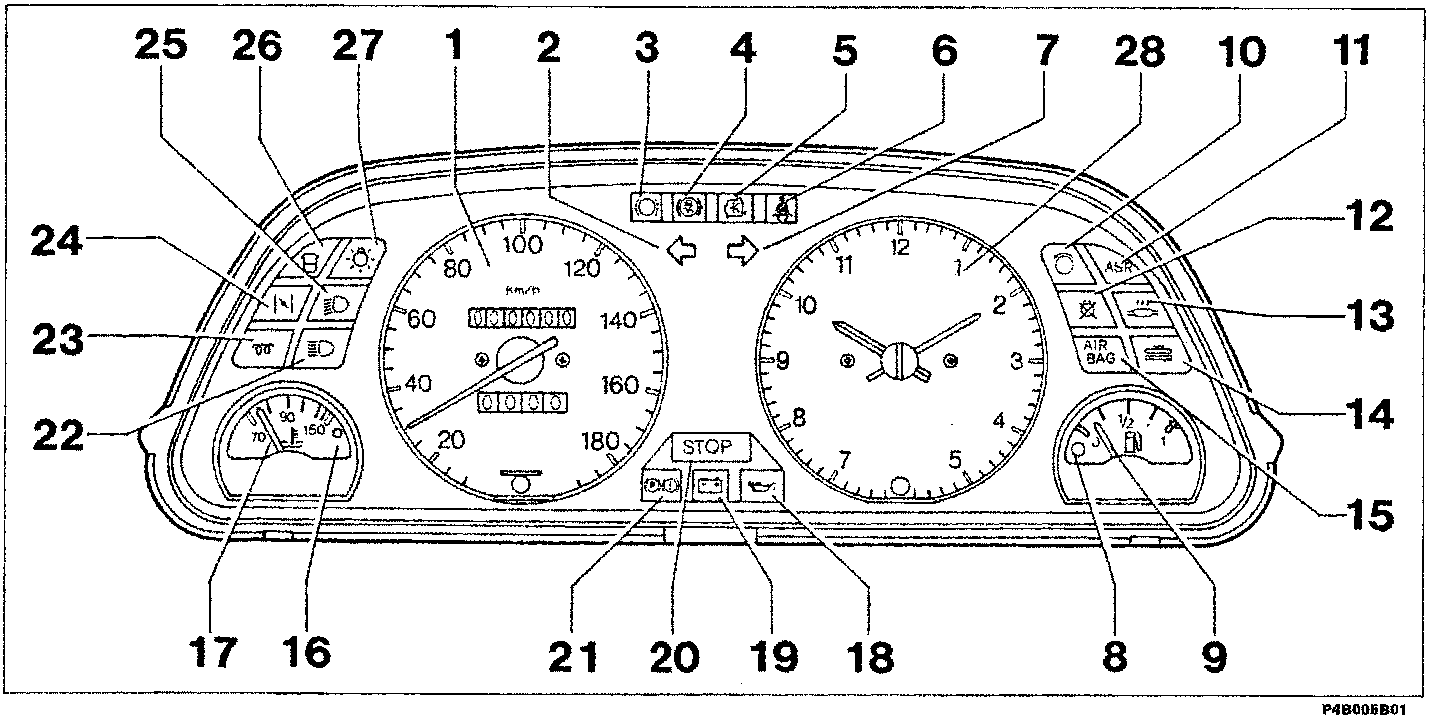

INSTRUMENT PANEL (Comfort specification)

INSTRUMENT PANEL (Comfort specification)

1. Speedometer-Mileometer
2. Left turn signal warning light (green)
3. Brake pad wear warning light (yellow)
4. Anti-lock braking system failure warning light (yellow) (ABS version)(not used)
5. Injection system failure warning light (yellow)
6. Seat belt undone warning light (red) (not used)
7. Right turn signal warning light (green)
8. Fuel reserve warning light (yellow)
9. Fuel level gauge
10. Wheel antislip warning light (green) (not used)
11. Wheel antislip failure/inhibition warning light (amber) (not used)
12. Side light failure warning light (amber) (not used)
13. Maximum catalytic converter temperature warning light (red) (not used)
14. Low coolant level warning light (red)
15. Air bag circuit warning light (amber)
16. Maximum coolant temperature warning light (red)
17. Water temperature gauge
18. Low engine oil pressure warning light (red)
19. Low generator charge warning light (red)
20. General failure warning light (red)
21. Hand brake on and brake fluid level warning light (red)
22. Main beam warning light (blue)
23. Glow plug preheating warning light (yellow) (diesel version)
24. Choke out warning light (yellow) (not used)
25. Dipped beam warning light (green)
26. Water in diesel filter warning light (yellow) (diesel version)
27. Side light warning light (green)
28. Analogue clock
