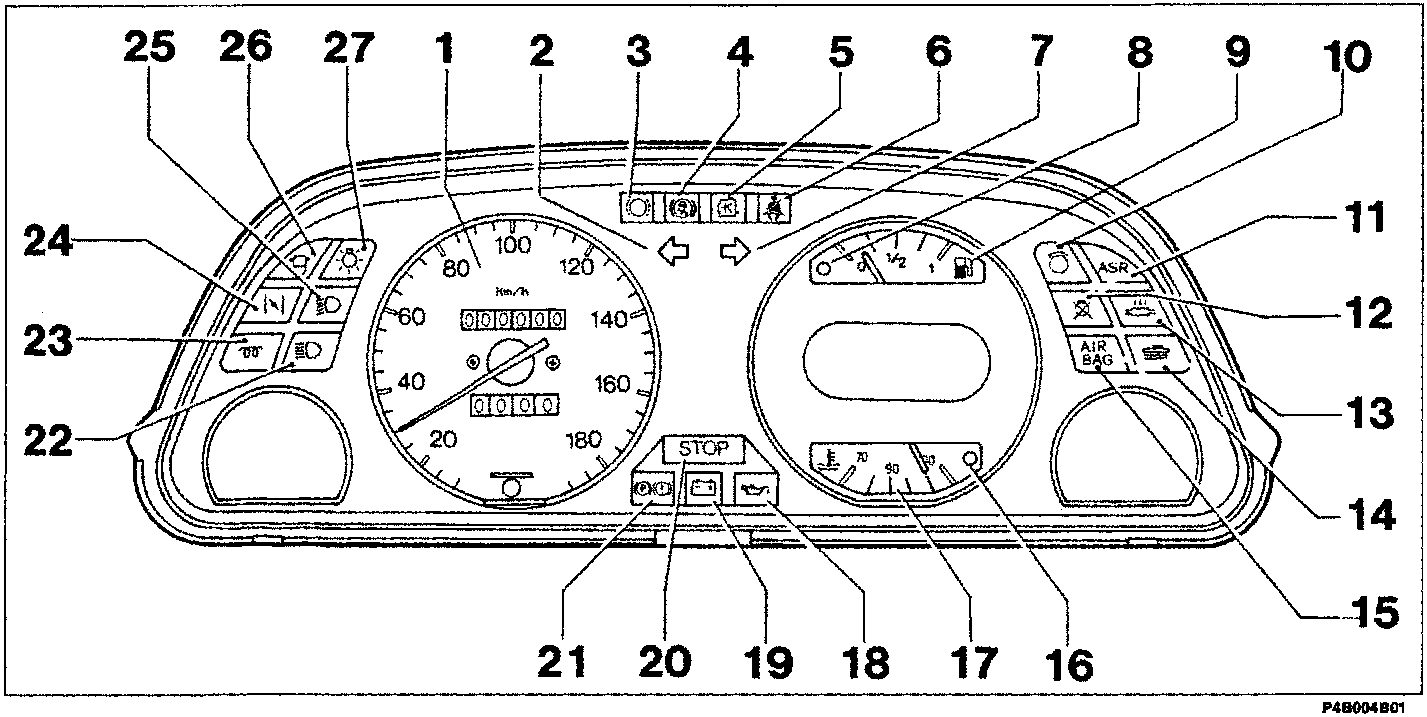

1. Speedomenter-Milometer
2. Left direction indicator warning light (green)
3. Brake pad wear warning light (yellow)
4. Anti-lock braking system circuit failure warning light (yellow) (ABS version) (not used)
5. Injection system failure warning light (yellow)
6. Seat belts not fastened warning light (red) (not used)
7. Right direction indicator warning light (green)
8. Fuel reserve warning light (yellow)
9. Fuel level gauge
10. Wheel anti-skid warning light (green) (not used)
11. Wheel anti-skid failure/inhibitor warning light (amber) (not used)
12. Side lights failure warning light (amber) (not used)
13. Catalytic converter overheating warning light (red) (not used)
14. Insufficient engine coolant level warning light (red)
15. Air-Bag circuit failure warning light (amber)
16. Engine coolant overheating warning light (red)
17. Water temperature gauge
18. Insufficient engine oil pressure warning light (red)
19. Battery recharging warning light (red)
20. General failure warning light (red)
21. Handbrake applied and brake fluid level warning light (red)
22. Main beam headlamps warning light (blue)
23. Heater plugs warning light (yellow) (diesel version)
24. Choke warning light (yellow) (not used)
25. Dipped headlamps warning light (green)
26. Water in fuel filter warning light (yellow) (diesel version)
27. Side lights warning light (green)
