00 Introduction and technical dataCombi

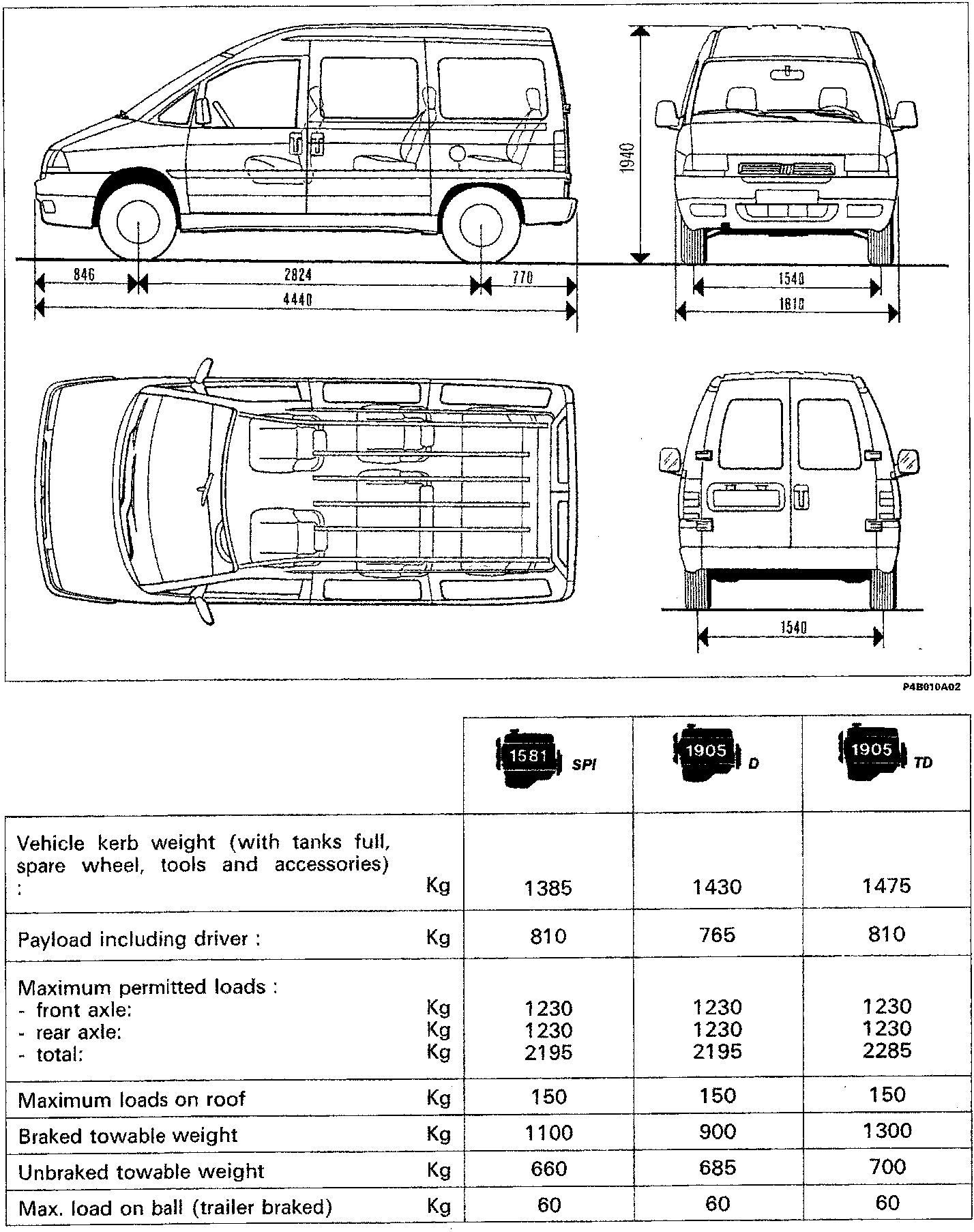

COMBI
| 1581 SPI | 1905 D | 1905 TD | |
|---|---|---|---|
| Vehicle kerb weight (with tanks full, spare wheel, tools and accessories) : | Kg 1385 | 1430 | 1475 |
| Payload including driver : | Kg 810 | 765 | 810 |
| Maximum permitted loads : - front axle: - rear axle: - total: |
Kg 1230 Kg 1230 Kg 2195 |
1230 1230 2195 |
1230 1230 2285 |
| Maximum loads on roof | Kg 150 | 150 | 150 |
| Braked towable weight | Kg 1100 | 900 | 1300 |
| Unbraked towable weight | Kg 660 | 685 | 700 |
| Max. load on ball (trailer braked) | Kg 60 | 60 | 60 |
