00 Introduction and technical dataTightening torques
Tightening torques

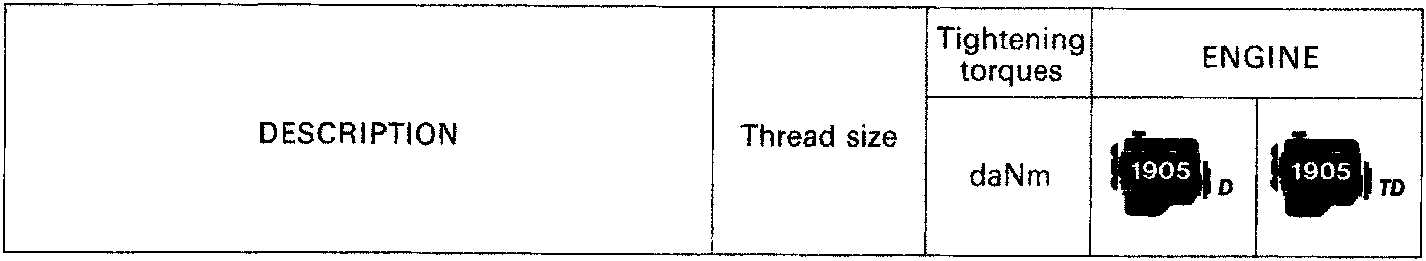

| DESCRIPTION | Thread size | Tightening torques daNm |
1905 D | 1905 TD |
|---|---|---|---|---|

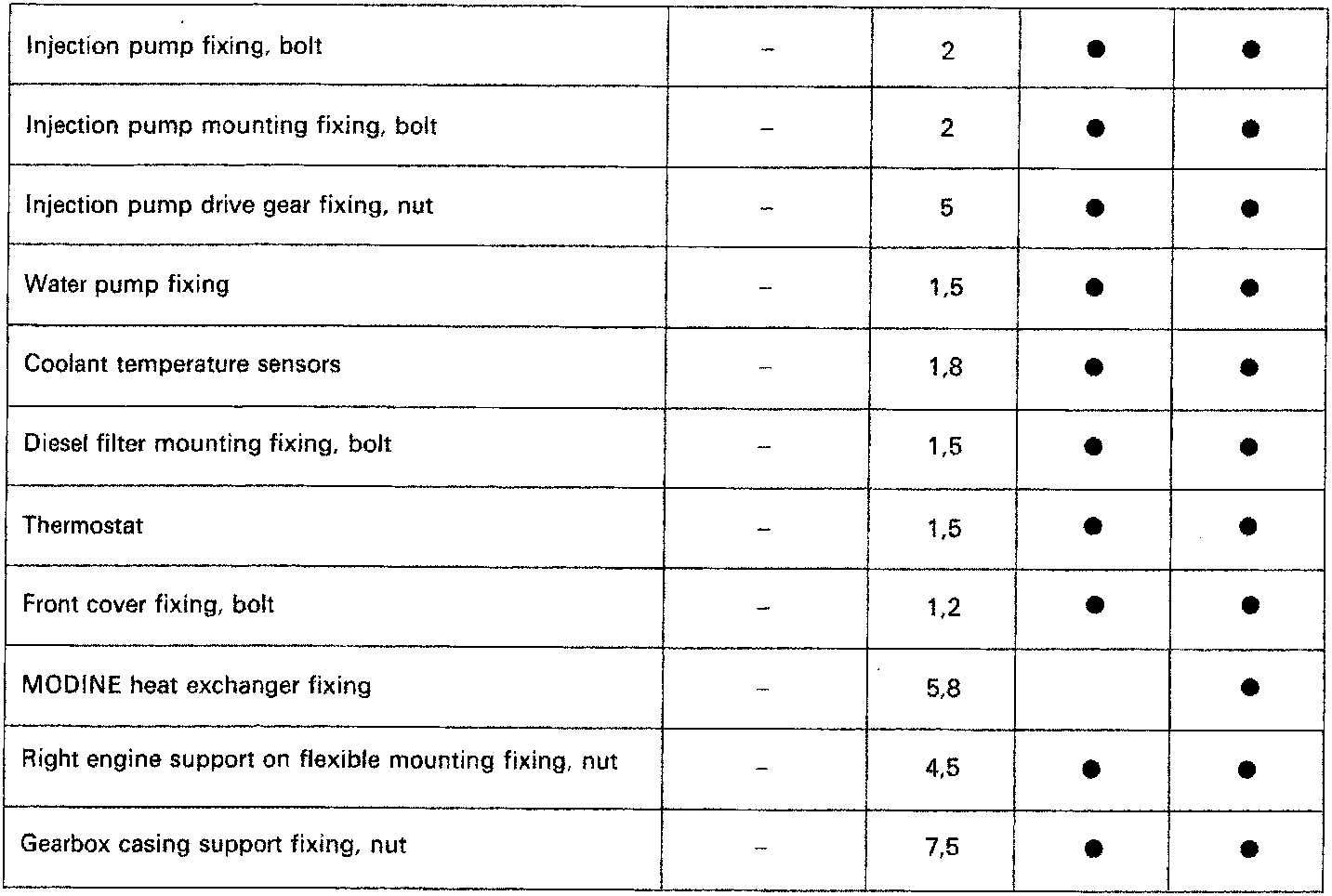

| Injection pump fixing, bolt | – | 2 | ● | ● |
| Injection pump mounting fixing, bolt | – | 2 | ● | ● |
| Injection pump drive gear fixing, nut | – | 5 | ● | ● |
| Water pump fixing | – | 1,5 | ● | ● |
| Coolant temperature sensors | – | 1,8 | ● | ● |
| Diesel filter mounting fixing, bolt | – | 1,5 | ● | ● |
| Thermostat | – | 1,5 | ● | ● |
| Front cover fixing, bolt | – | 1,2 | ● | ● |
| MODINE heat exchanger fixing | – | 5,8 | ● | |
| Right engine support on flexible mounting fixing, nut | – | 4,5 | ● | ● |
| Gearbox casing support fixing, nut | – | 7,5 | ● | ● |
