00 Introduction and technical dataTightening torques
Tightening torques
| DESCRIPTION | Thread size | Tightening torques | ENGINE | ||
|---|---|---|---|---|---|
| daNm | [1581 SPI] | [1905 D] | [1905 TD] | ||
| CLUTCH | |||||
| Clutch mechanism fixing, bolt | – | 1,5 | ● | ● | ● |
| GEARBOX AND DIFFERENTIAL | |||||
| Crown wheel-differential casing fixing, bolt | – | 6,5 | ● | ● | |
| Speed sensor support fixing, bolt | – | 2 | ● | ● | |
| Speed sensor | – | 1,25 | ● | ● | |
| Differential cover fixing, bolt | M10 | 4 | ● | ● | |
| Differential cover fixing, bolt | M7 | 1,25 | ● | ● | |
| Gearbox casing fixing, bolt | – | 1,25 | ● | ● | |
| Reverse shaft fixing, bolt | – | 2 | ● | ● | |
| Lay shaft stop screw | – | 1,5 | ● | ● | |
| Stop plate for selector fork guide rod, bolt | – | 1,5 | ● | ● | |
| Lay shaft fixing, nut | – | 5 | ● | ● | |
| Main shaft fixing, nut | – | 5 | ● | ● | |
| Bolt on cover | – | 1,25 | ● | ● | |
| Reversing lights switch | – | 2,5 | ● | ● | |
| Bolt on thrust sleeve | – | 1,25 | ● | ● | |
| Shaft rings fixing, bolt | – | 2,4 | ● | ||
| Main shaft fixing, nut | – | 25 | ● | ||

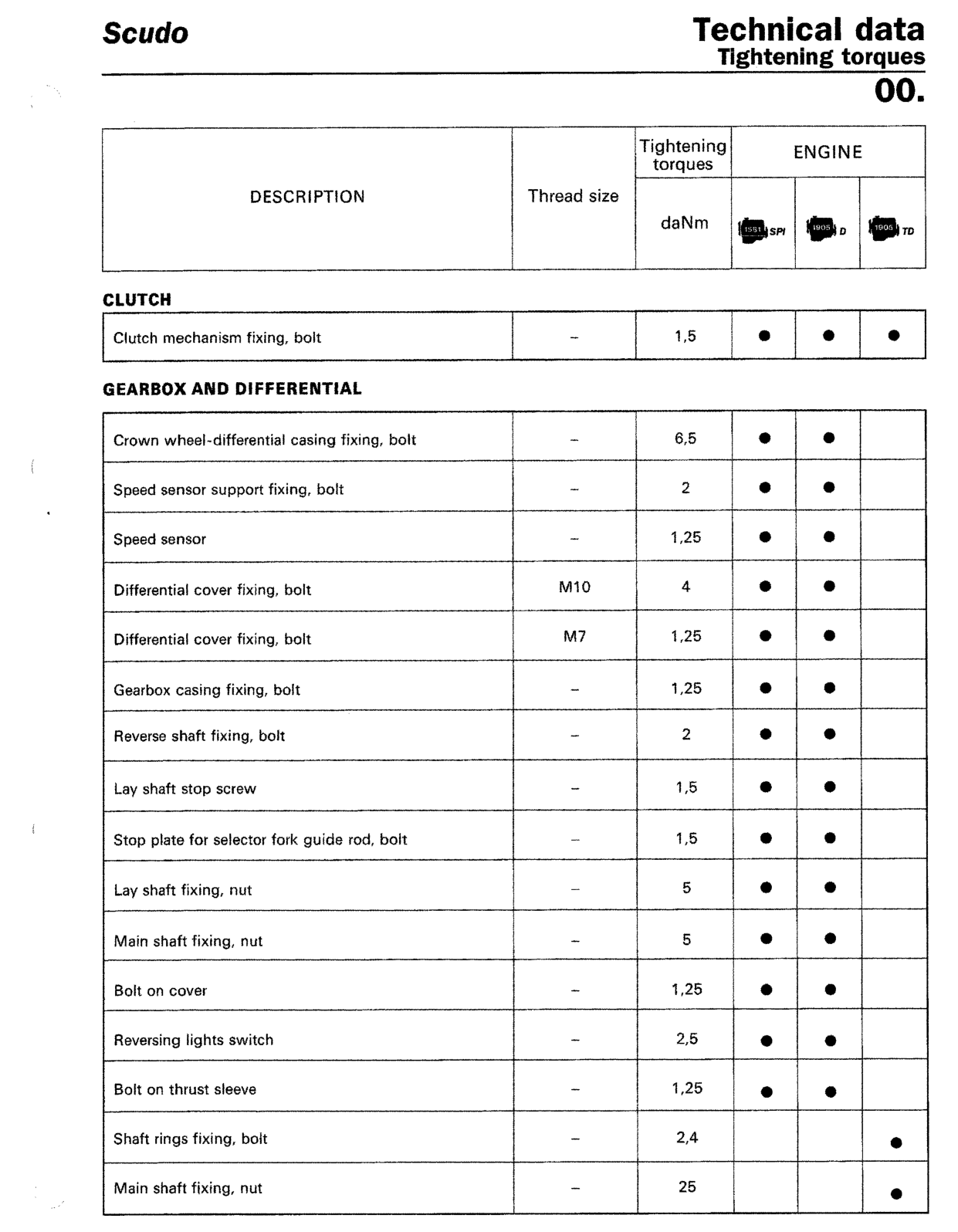

Original page
