Removing - refitting

REMOVING - REFITTING

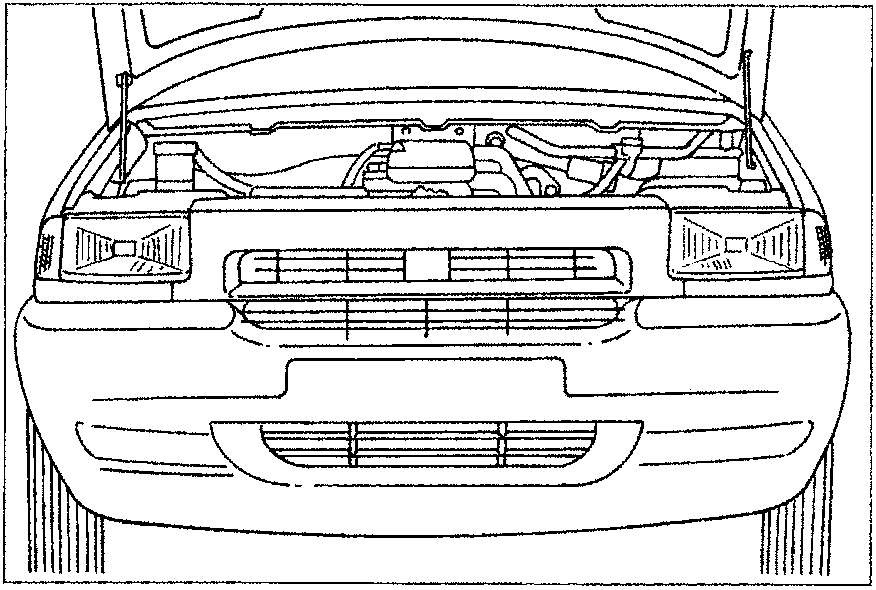

Position the vehicle on a lift, then: - remove the front wheels; - disconnect the negative battery lead and then the positive one, then remove the battery. Drain the air conditioning system (if fitted) using the appropriate equipment.

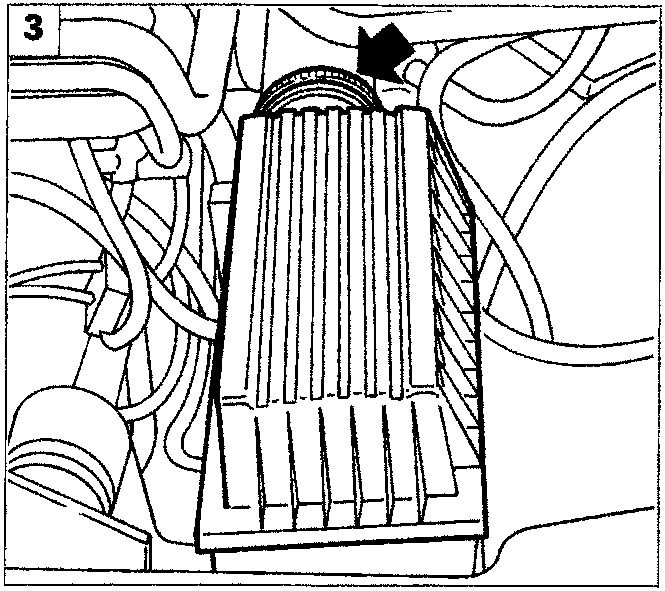

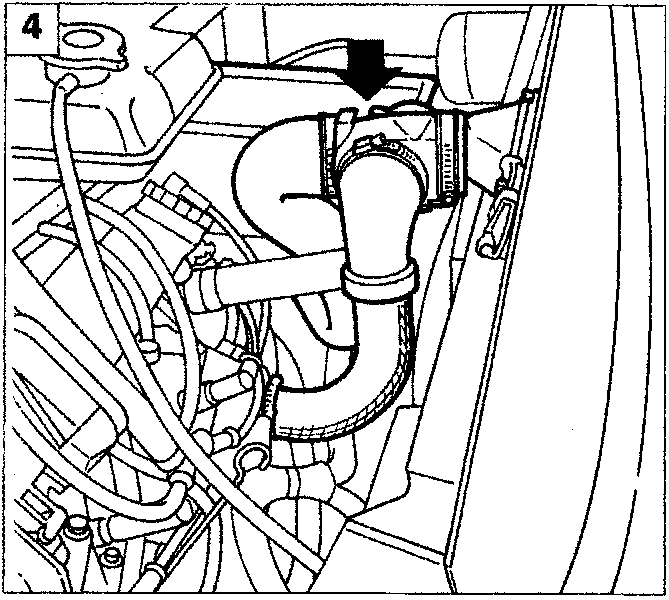

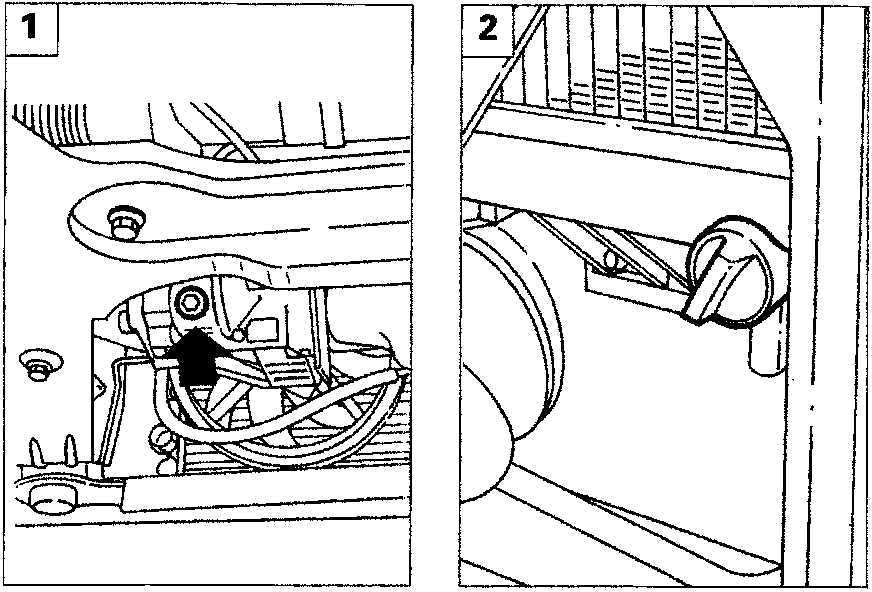

[Icon: Lift symbol] [Icon: F2] Carry out the following operations: 1. drain the gearbox oil via the drain plug (arrow); 2. drain the coolant via the tap at the base of the radiator; 3. loosen the band (arrow) and remove the air filter cover acting on the retaining hooks; 4. disconnect the pipe (arrow), undo the bolts fixing it to the headlamp holder cross member and the band fixing the hot air pipe, then remove the filter casing;
