Removing - refitting (page 2 of 3)

Make

Fiat

Model

Scudo Factory Service Manual

Year

1996–2006

Section

Removing-refitting (1581 SPI)

10 EngineRemoving - refitting · page 2 of 3

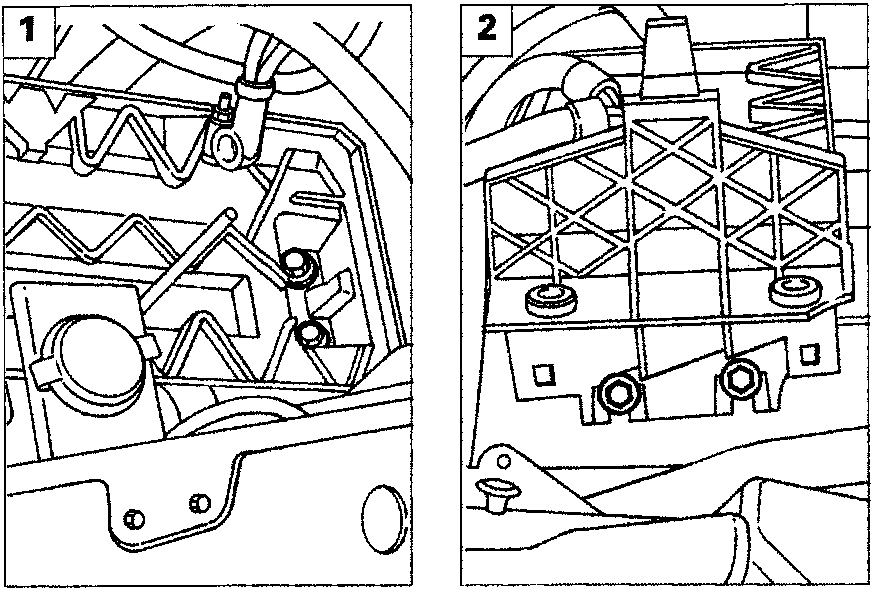

1. undo the inner bolts fixing the battery drip tray;
2. undo the outer bolts fixing the battery drip tray;

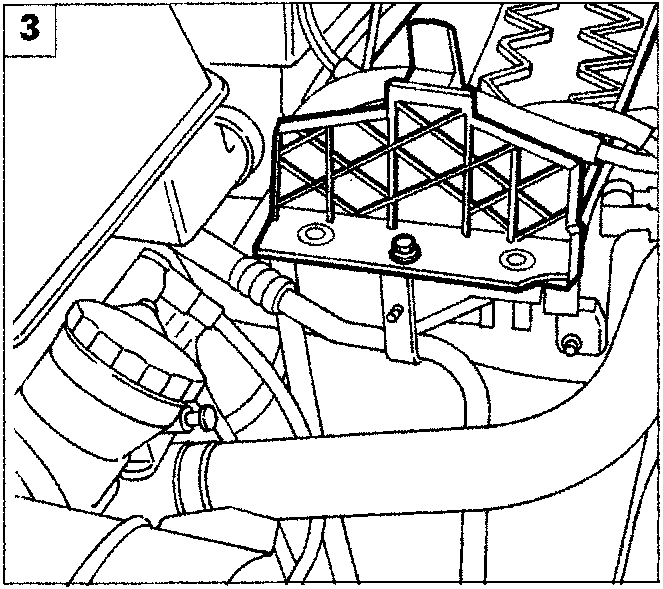

3. for versions with air conditioning, undo the bolt fixing the air conditioning pipe mounting bracket, then remove the battery drip tray;

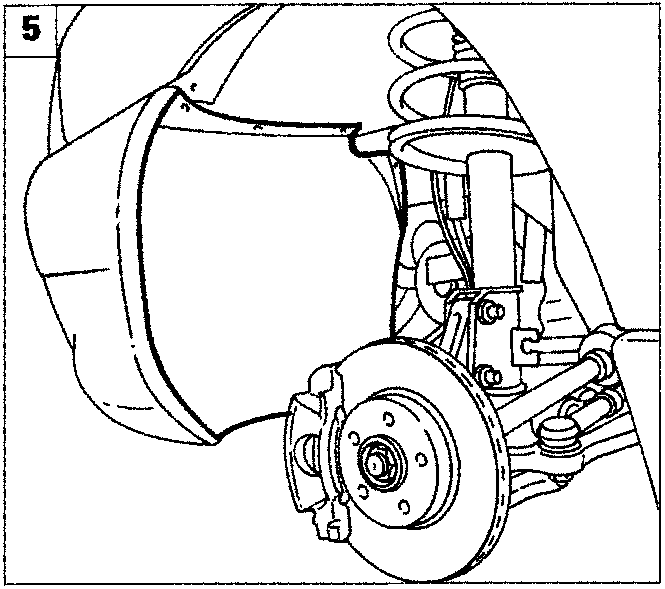

4. undo the bolts and remove the two right wheel arch liners;

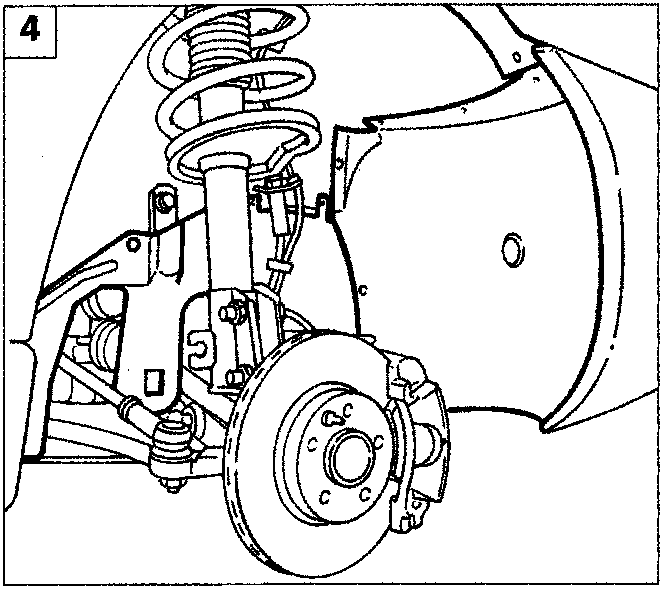

5. undo the bolts and remove the left wheel arch liner;

02 Engine
