Removing-refitting (1581 SPI)

10 EngineRemoving - refitting · page 3 of 3

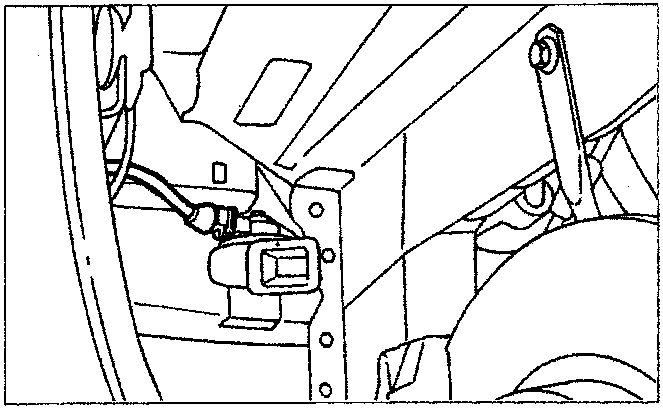

- disconnect the connector for the horn;

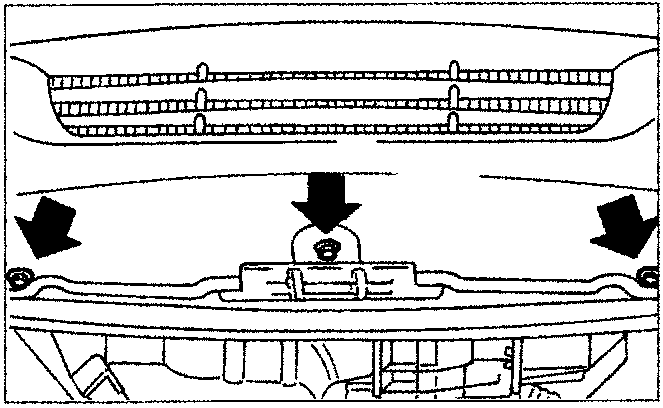

- undo the three lower bolts (arrow) supporting the bumpers;

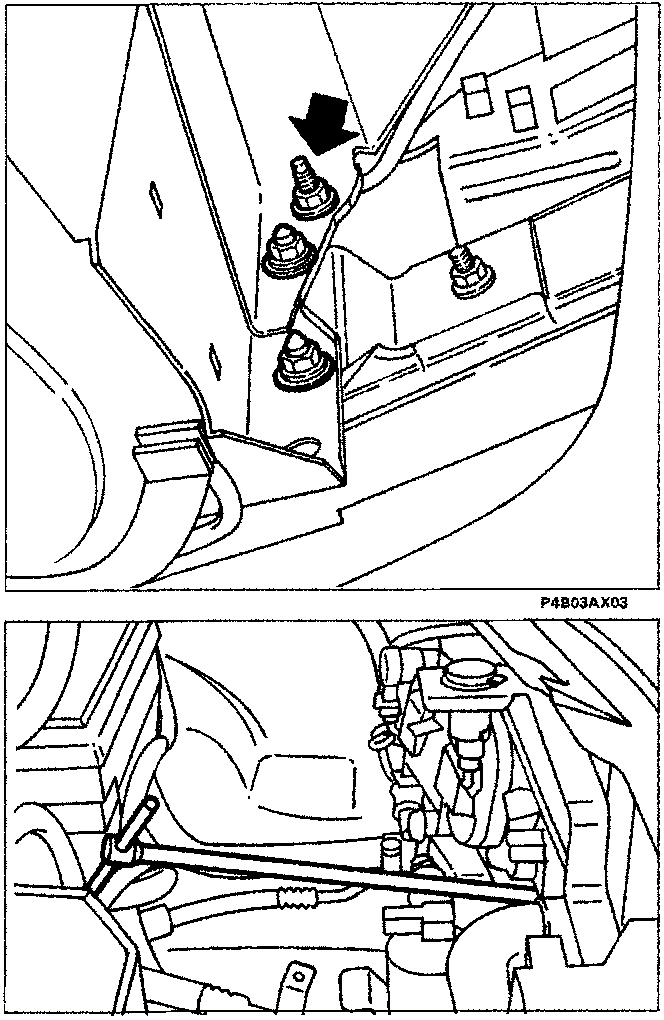

- undo the two intermediate bolts on both sides supporting the bumper; - also undo the bolt fixing the headlamp holder cross member (freccia); - undo the upper bolt fixing the bumper positioned under the front light cluster and remove the bumper, sliding it forwards.
