Removing-refitting

Removing-refitting

[Icon: Seat adjustment up]

[Icon: Seat adjustment down]

Working via the engine compartment, proceed as follows:

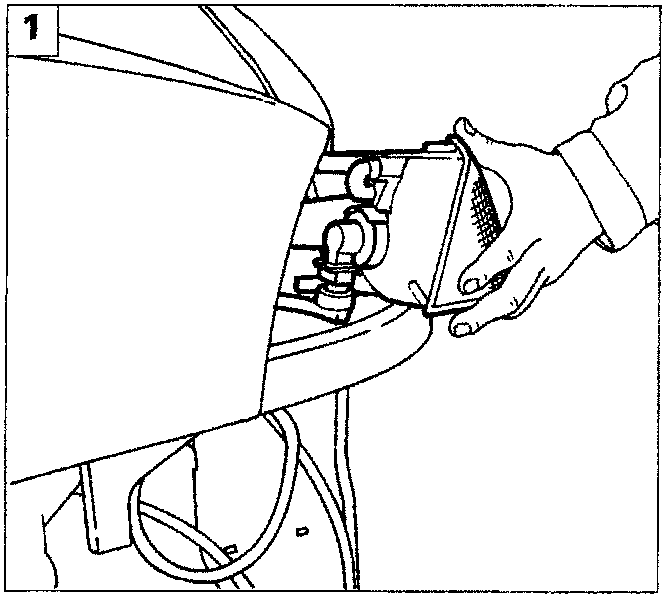

1. release the tab retaining the direction indicator, then push the indicator forwards and remove it after having disconnected the connector;

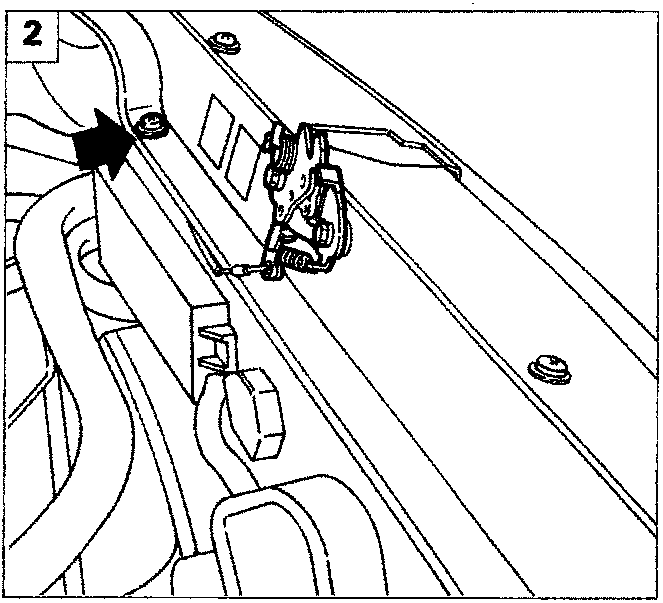

2. undo the bolt fixing the bonnet release cable (arrow); then undo the two fixing bolts and remove the bonnet lock;

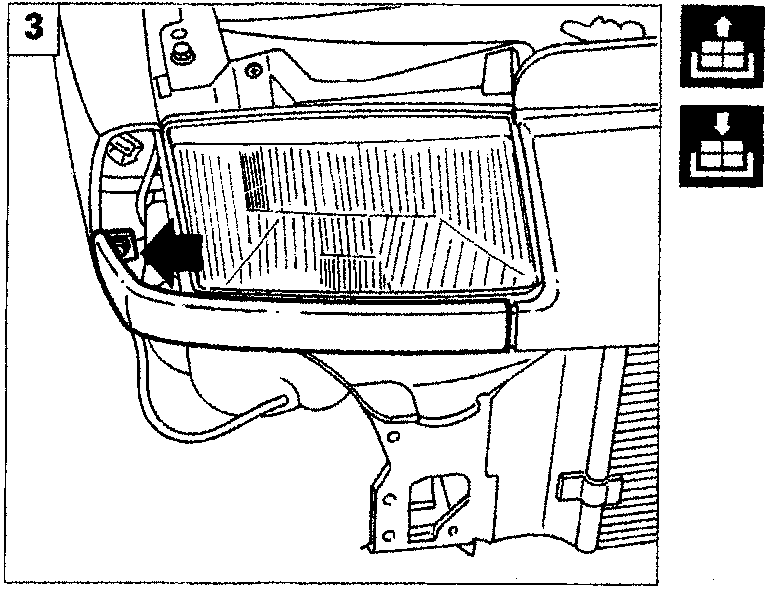

3. undo the fixing bolt (arrow) and remove the trims under the headlamp;

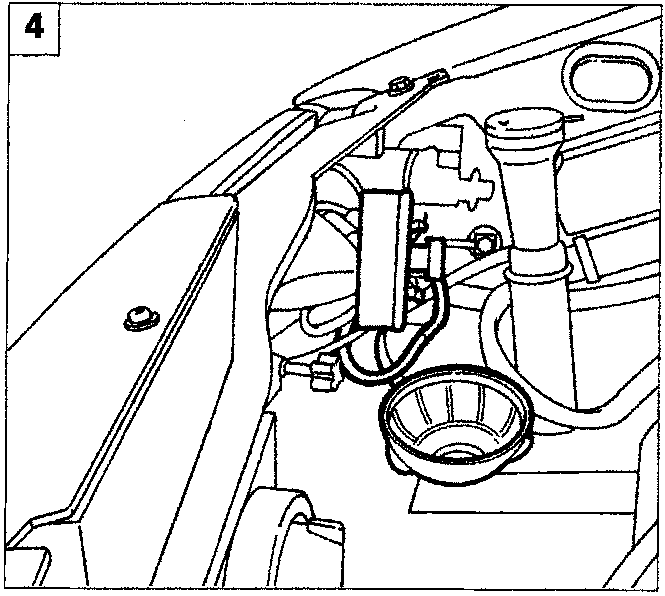

4. remove the plastic protection and disconnect the connectors from the light clusters;

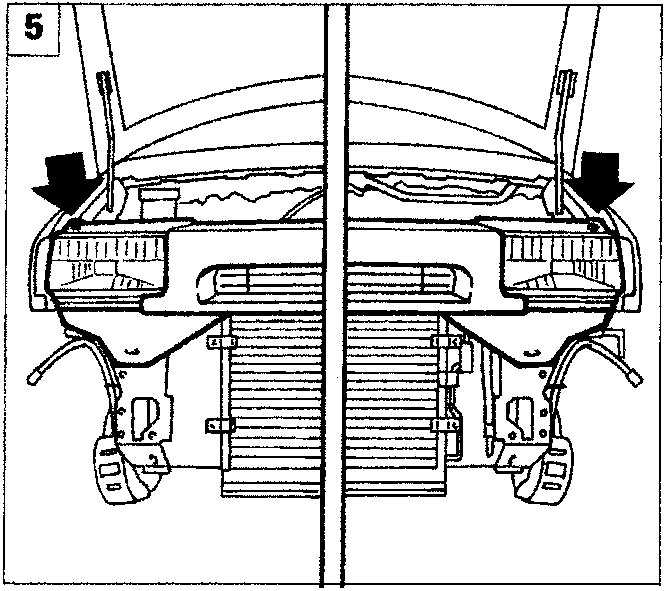

5. undo the two side fixing bolts (arrow) and remove the cross member complete with grille and light clusters.
