Removing-refitting (page 11 of 17)

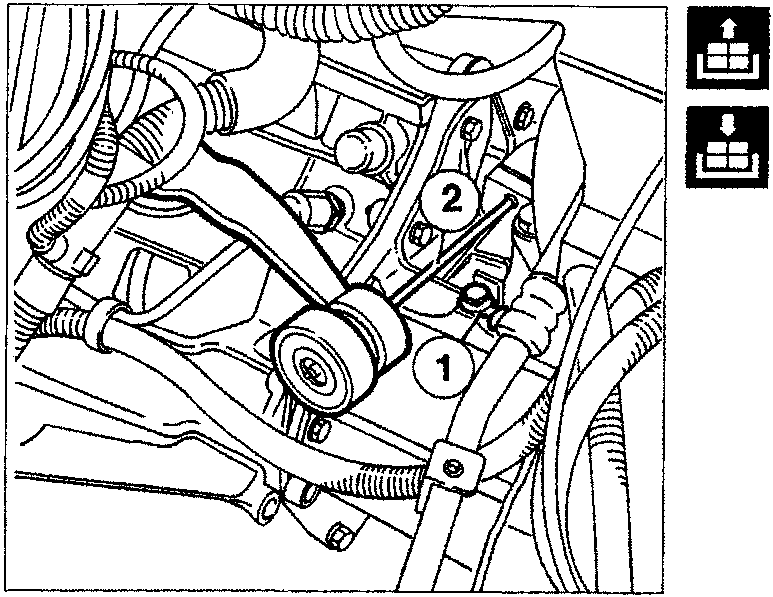

• disconnect the earth cable (1) and release the clutch cable (2) from the appropriate lever;

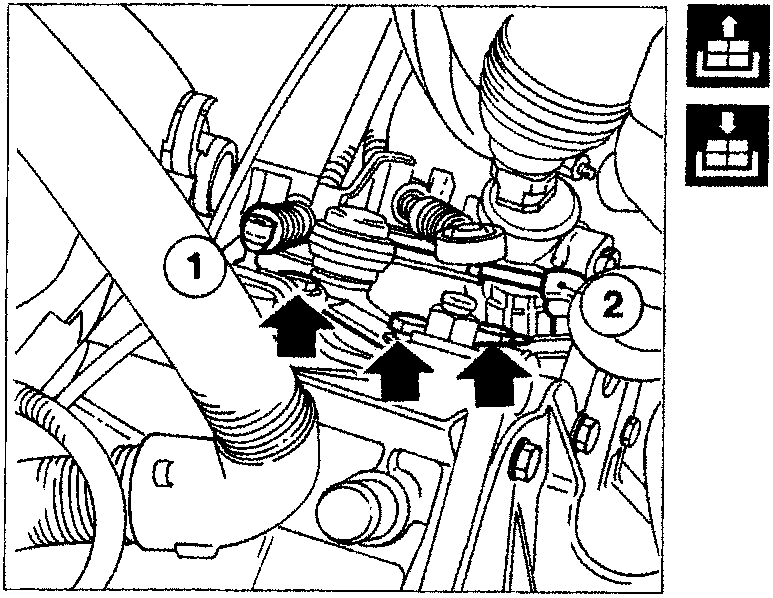

• release the two ball joints from the gear selector (1) and engagement (2) levers;
• undo the bolts (arrow) fixing the gearbox external control linkage bracket.

Working from the lower part of the vehicle, carry out the following operations:

• undo the fixing nut and remove the bracket complete with cables.

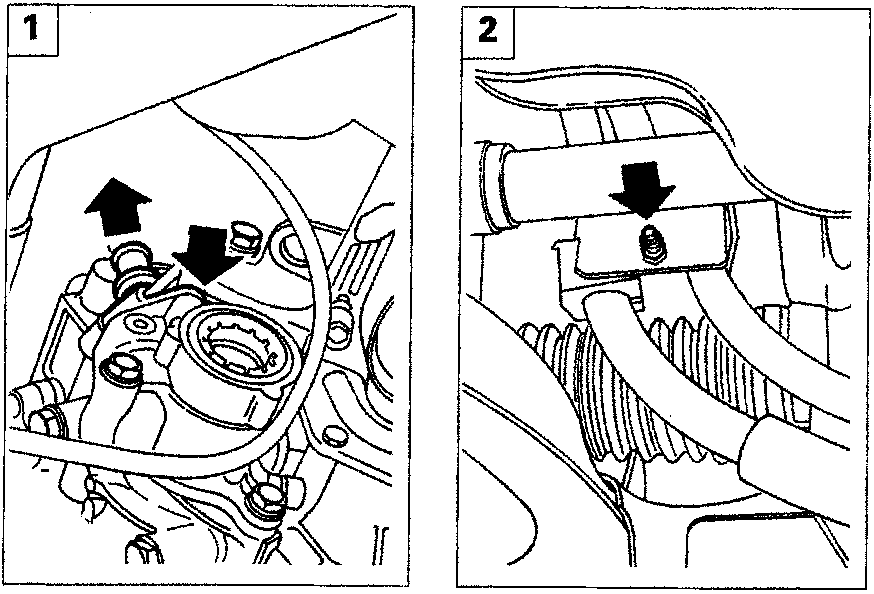

1. undo the fixing bolt (arrow) and remove the speedometer sensor;

NOTE Extract the sensor with very carefully to prevent the gear from falling inside the differential.

2. undo the fixing bolt (arrow) and remove the power steering pipes mounting bracket.
