Removing-refitting (1581 SPI)
10 EngineRemoving-refitting · page 2 of 17

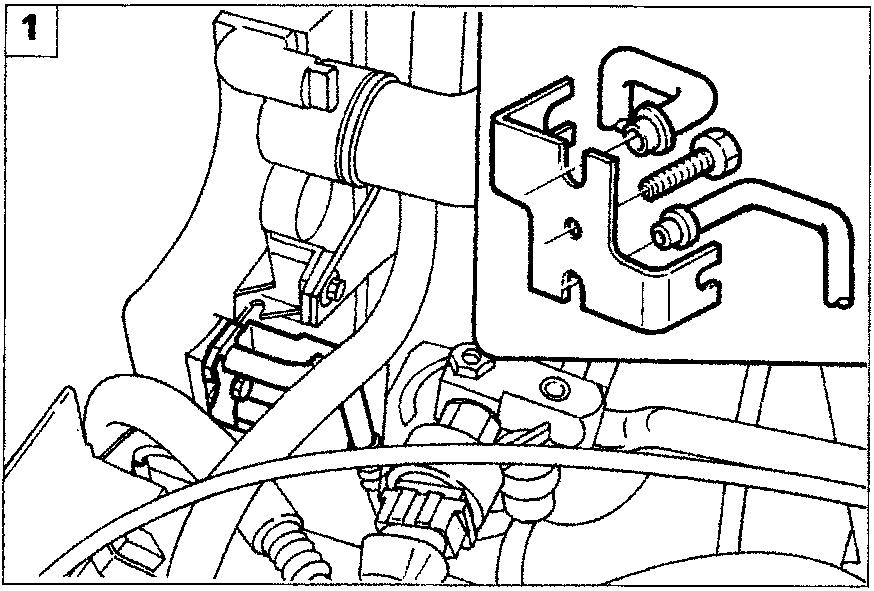

Detail of the condenser mounting bracket and pipe retaining plate on the left side
Proceed with the removal of the air conditioning condenser carrying out the following operations: 1. undo the bolt fixing the condenser on the left side and rotate the pipe retaining plate, releasing the actual pipes from the condenser; NOTE Take care to recover the O Rings. NOTE When refitting, position the bracket for the pipes as shown in the diagram, so that the pipes are properly supported (detail).

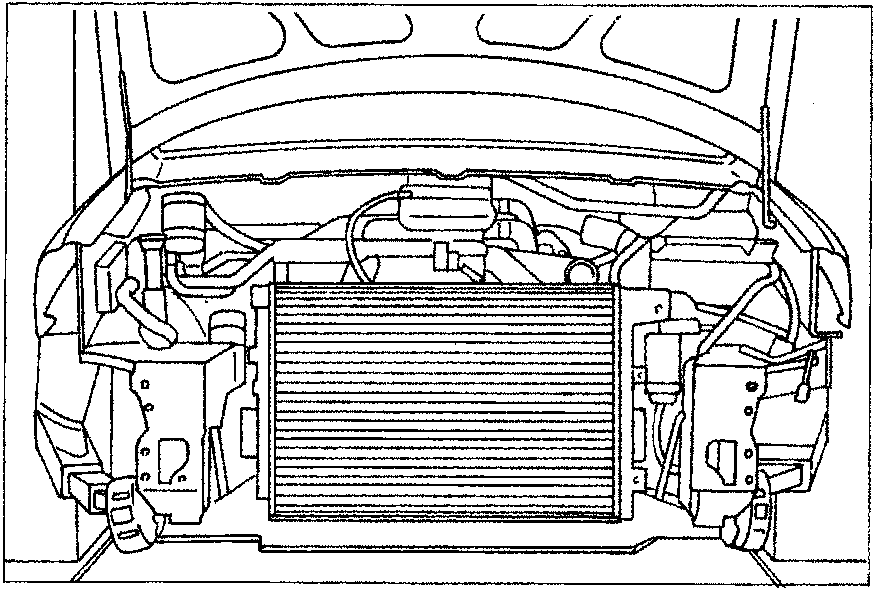

Front view of the engine bay showing the air conditioning condenser location
Icon indicating upward and downward movement for removing the condenser

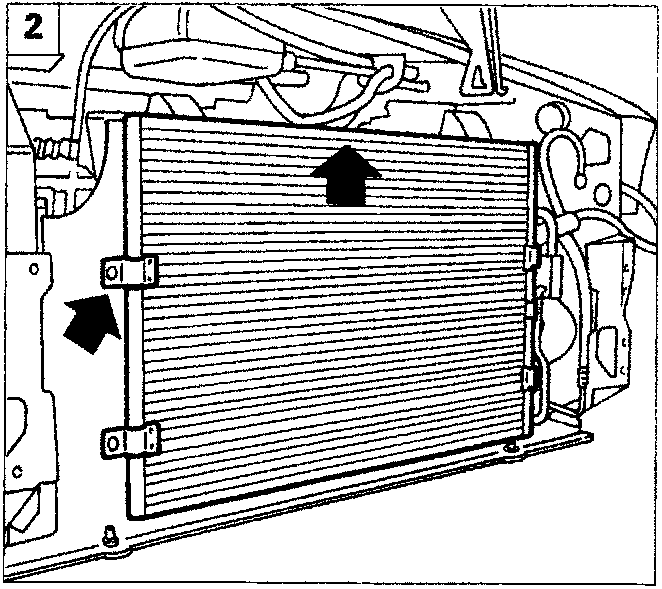

2. undo the bolt fixing the condenser on the right side (arrow) and remove the condenser raising it; 3. remove air duct from both sides, releasing it from the support hooks.
Detail of the air duct release hooks on the side of the condenser assembly

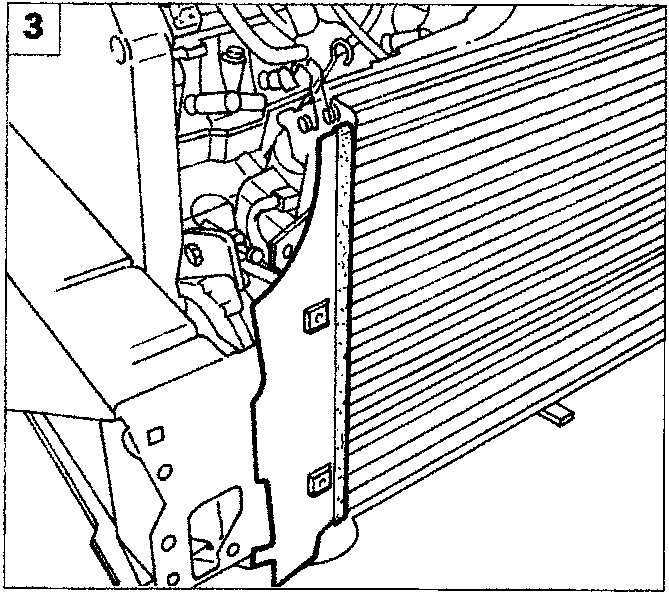

Close-up detail of the condenser edge and its mounting point
