Removing-refitting (1581 SPI)

10 EngineRemoving-refitting · page 12 of 17

Complete the removal of the power unit by carrying out the following operations:

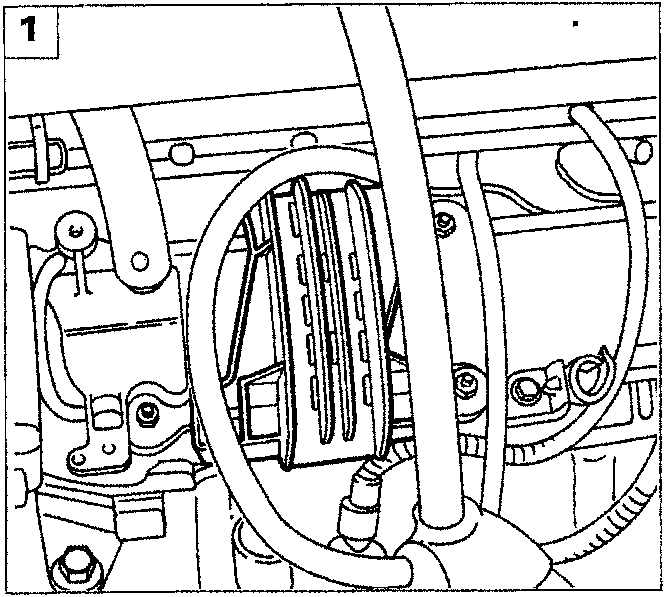

1. undo the fixing bolts and remove the pipe guide;

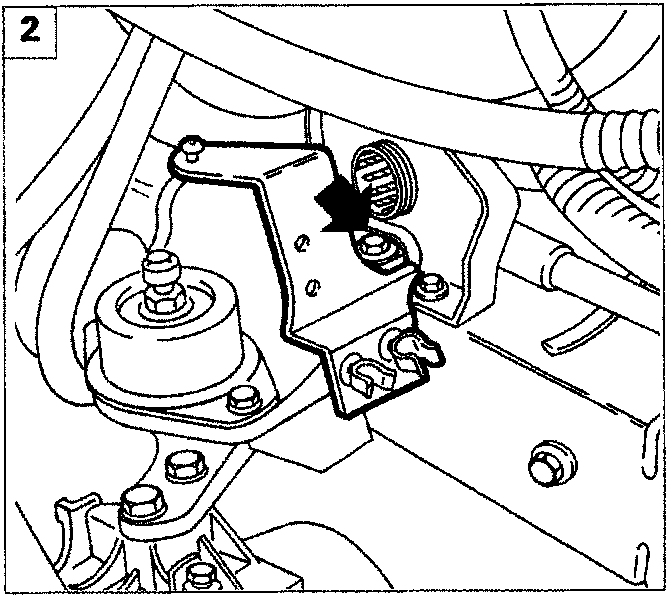

2. undo the fixing bolt (arrow) and remove the air conditioning pipes mounting bracket;

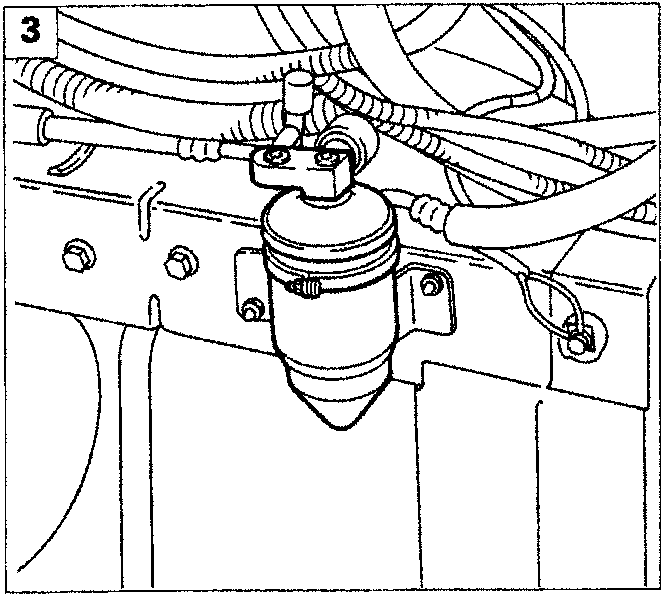

3. undo the centre bolt, then remove and air conditioning filter and move it aside;

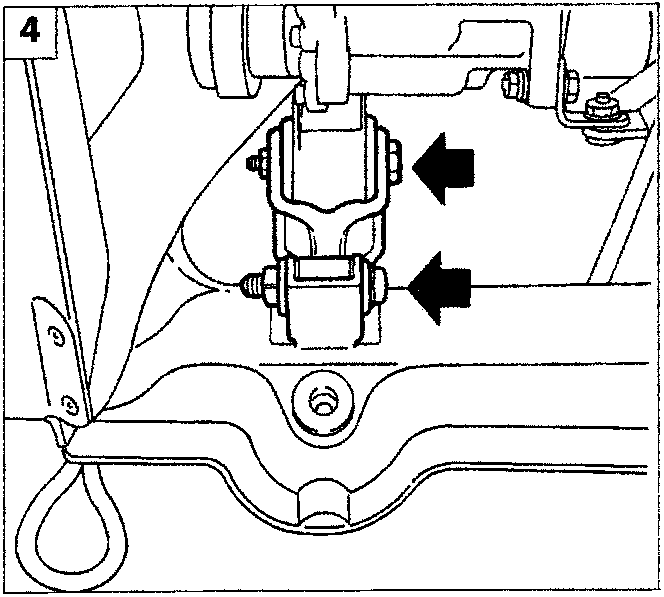

4. undo the fixing bolts (arrow) and remove the power unit front support connecting rod;
