Fiat Scudo Factory Service Manual (1996-2006)02 · 10 Engine
02 · Engine

Removing-refitting (page 3 of 17)

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Removing-refitting (1581 SPI)
10 EngineRemoving-refitting · page 3 of 17

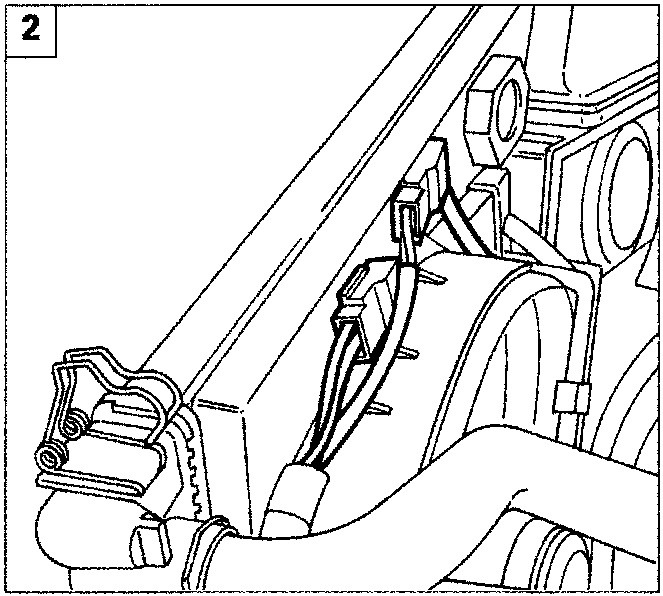

Diagram showing the upper section of the coolant radiator and fan assembly, specifically highlighting the hose connection area.
Diagram showing the electrical connectors and wiring harness located near the top of the radiator assembly.
Diagram illustrating a hand using a tool to extract the retaining ring from the coolant inlet hose housing.

Proceed with the removal of the coolant radiator, carrying out the following operations:

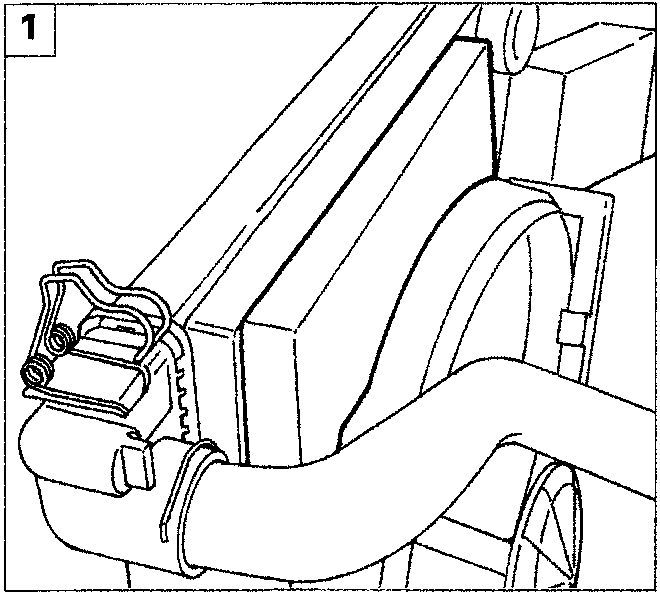

  1. remove the fan connector box cover;
  2. disconnect the two electrical connectors;

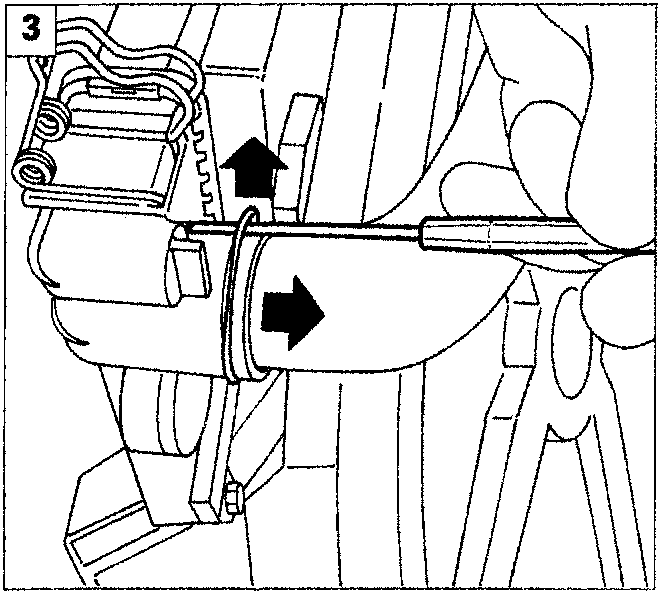

  3. extract coolant inlet hose retaining ring from its housing, then remove the hose;

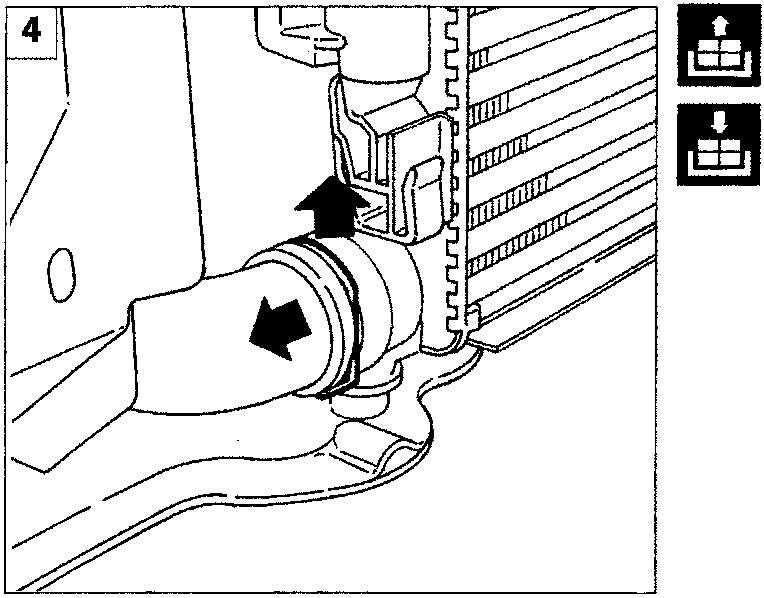

Diagram illustrating the extraction of the retaining ring from the coolant outlet hose housing.
  1. carry out the same operation for the coolant outlet hose, then remove the radiator raising it.
