Removing-refitting (page 8 of 17)

[Icon: Up arrow on block] [Icon: Down arrow on block]

Proceed as follows:

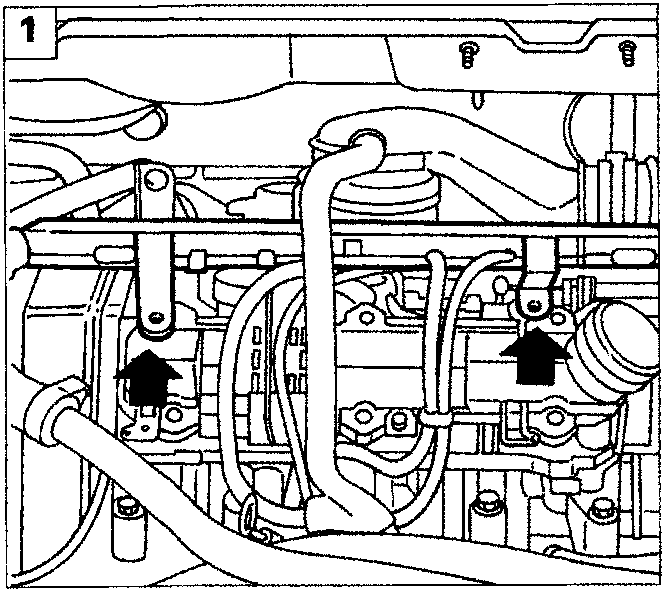

1. undo the fixing bolts (arrow) and more the engine wiring to the right hand side;

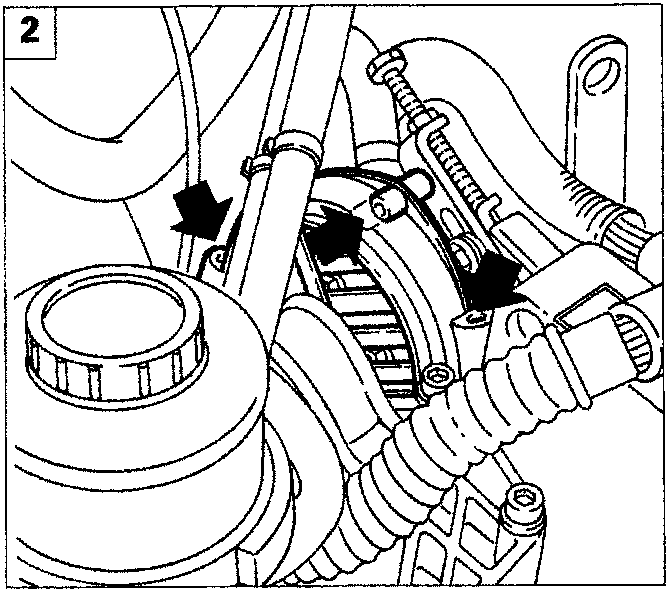

2. undo the three fixing bolts (arrow) and remove the power steering pump pulley shield;

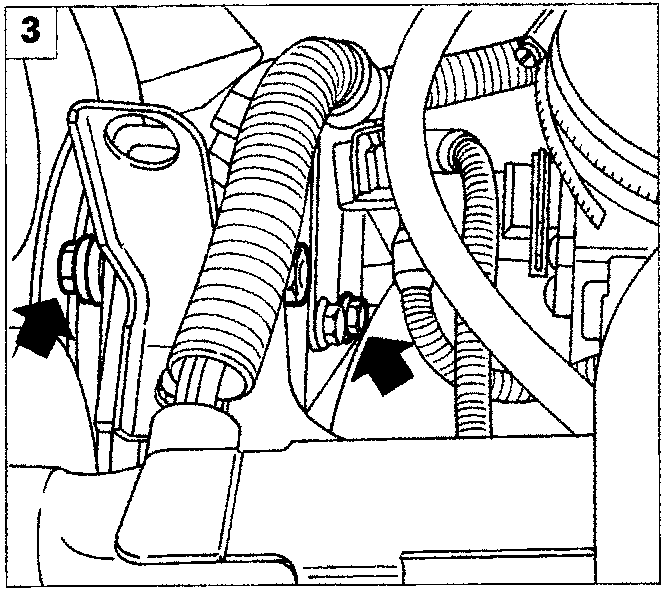

3. loosen the bolts fixing the power steering pump (arrow);

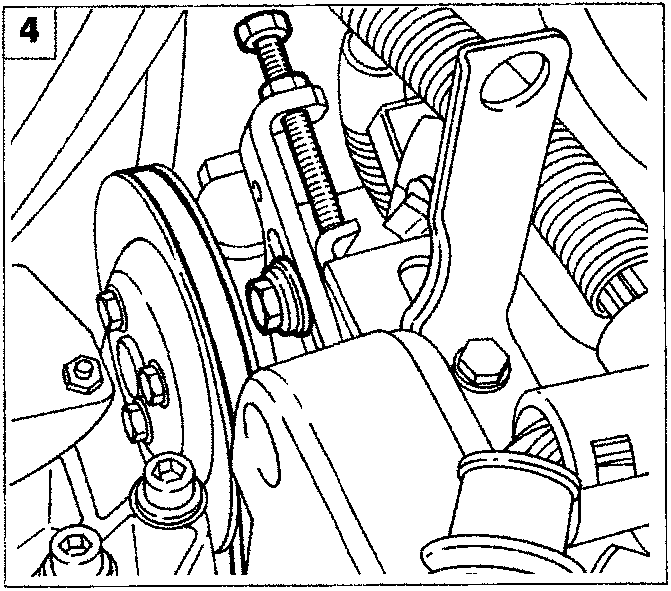

4. loosen the belt tension adjustment screw, remove the actual belt, then completely undo the fixing bolts and remove the power steering pump, placing it in the engine compartment;
