Removing-refitting (page 6 of 17)

↑ ↓

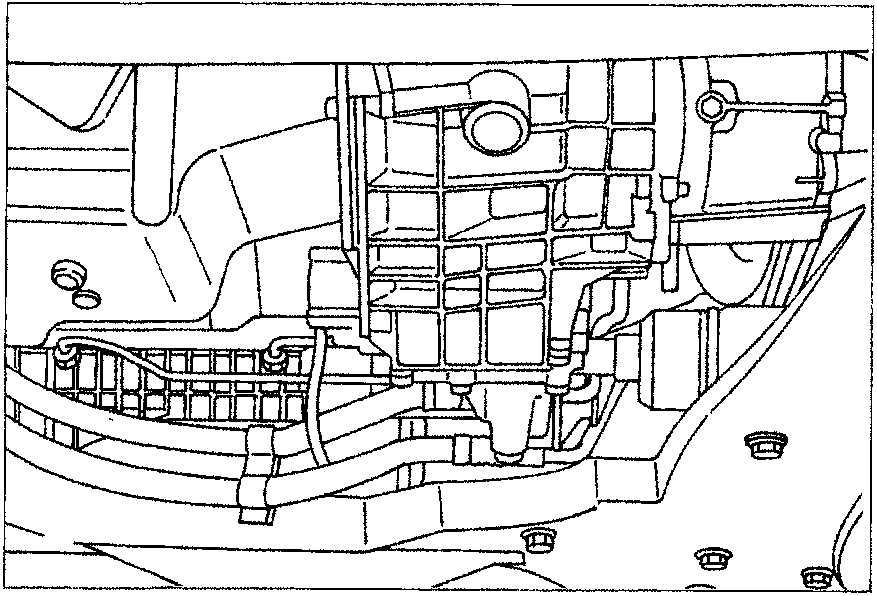

Working from the lower part of the vehicle, proceed as follows:

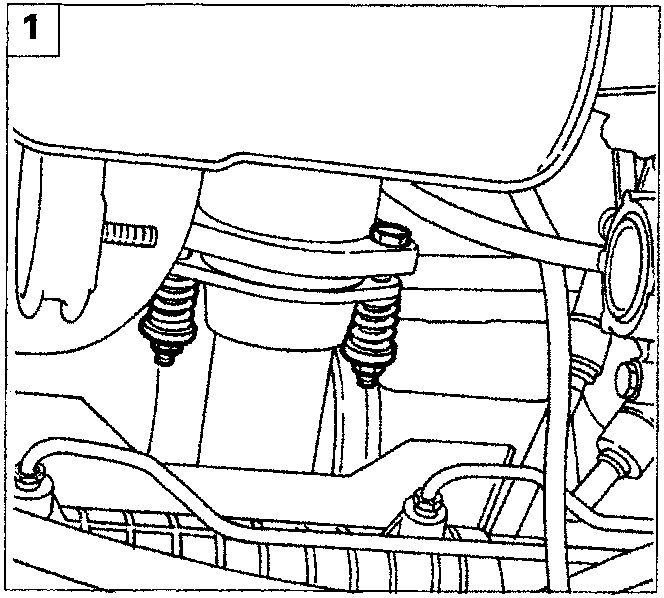

1. undo the bolts fixing the exhaust pipe to the elbow;

NOTE It is advisable to replace the springs if the mileage of the vehicle is high.

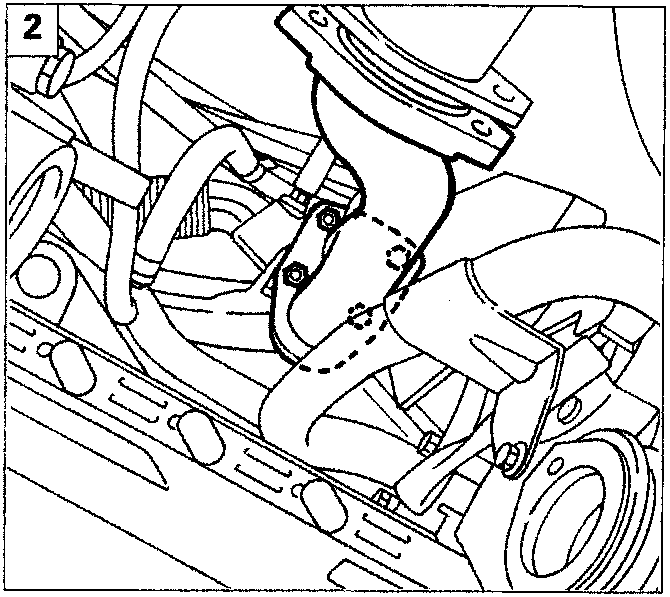

2. undo the nuts fixing the elbow to the exhaust manifold and remove the actual elbow.

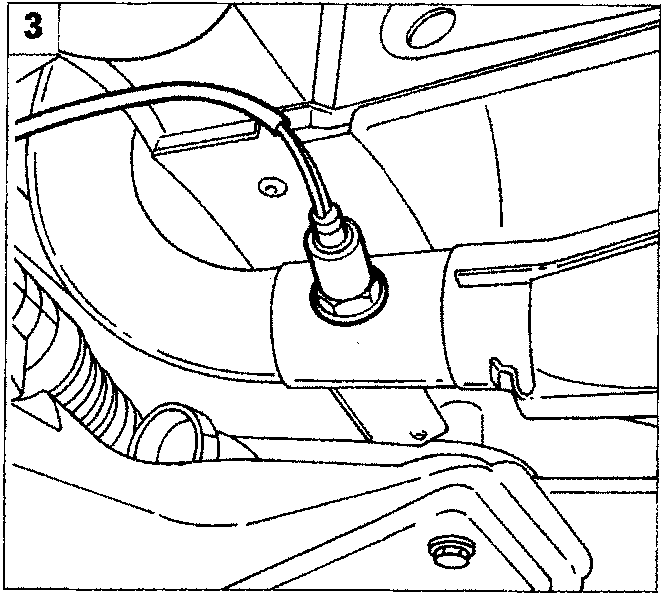

3. release the Lambda sensor cable from the bands, then undo and remove the Lambda sensor.

NOTE When refitting, take care to rotate the sensor in an anti-clockwise direction so that at the end of the fitting the wiring is not twisted.
