Fiat Scudo Factory Service Manual (1996-2006)02 · 10 Engine
02 · Engine

Removing-refitting (page 10 of 17)

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Removing-refitting (1581 SPI)
10 EngineRemoving-refitting · page 10 of 17

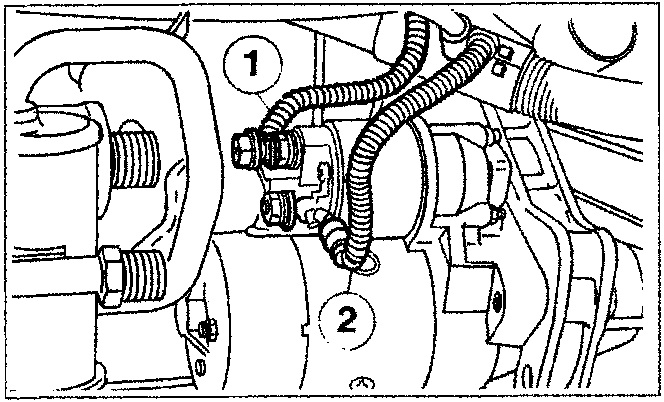

Diagram showing earth cable (1) and supply cable (2) connected to the starter motor
  • disconnect the earth cable (1) and supply cable (2) from the starter motor;

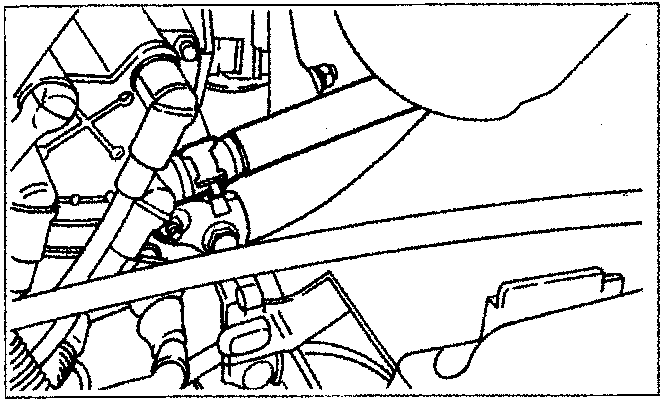

Diagram showing the coolant supply pipe connection to the heater
  • disconnect the coolant supply pipe to the heater;

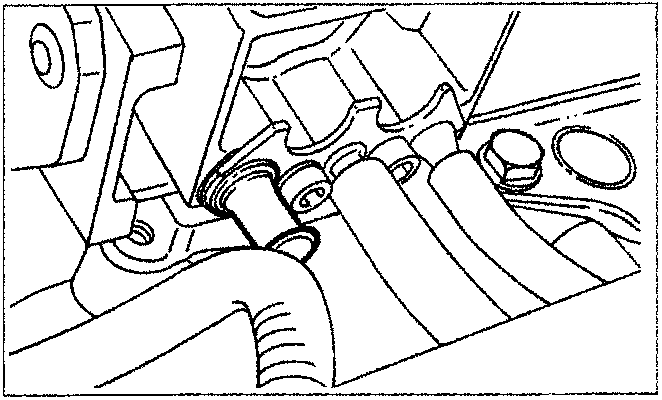

Diagram showing the charcoal filter pipe connection to the intake on the butterfly casing
  • disconnect the charcoal filter pipe from the intake on the butterfly casing;

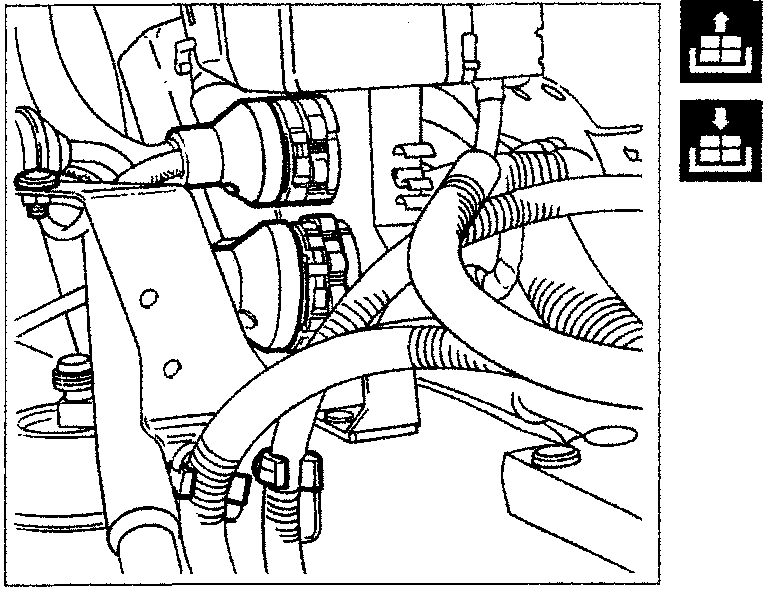

Diagram showing two ring nuts and cables attached to a bracket
  • undo the two ring nuts and disconnect the cables from the bracket;
