Fiat Scudo Factory Service Manual (1996-2006)02 · 10 Engine
02 · Engine

Removing-refitting (page 9 of 17)

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Removing-refitting (1581 SPI)
10 EngineRemoving-refitting · page 9 of 17

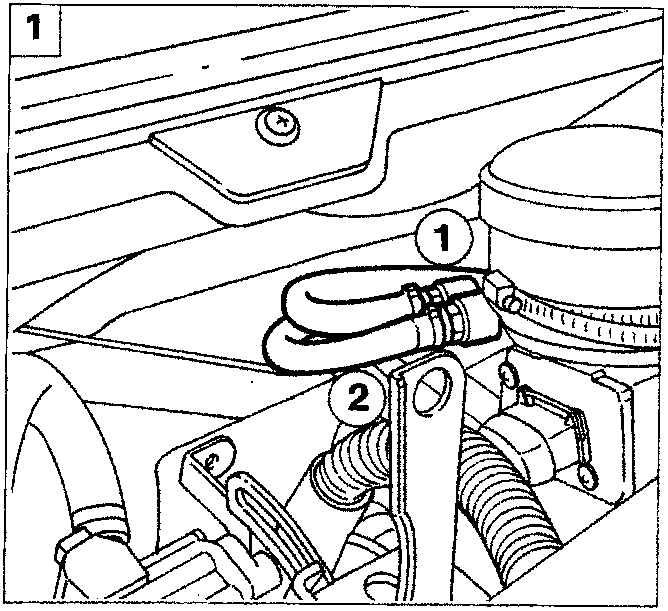

Diagram showing fuel inlet and outlet pipes connected to the butterfly casing

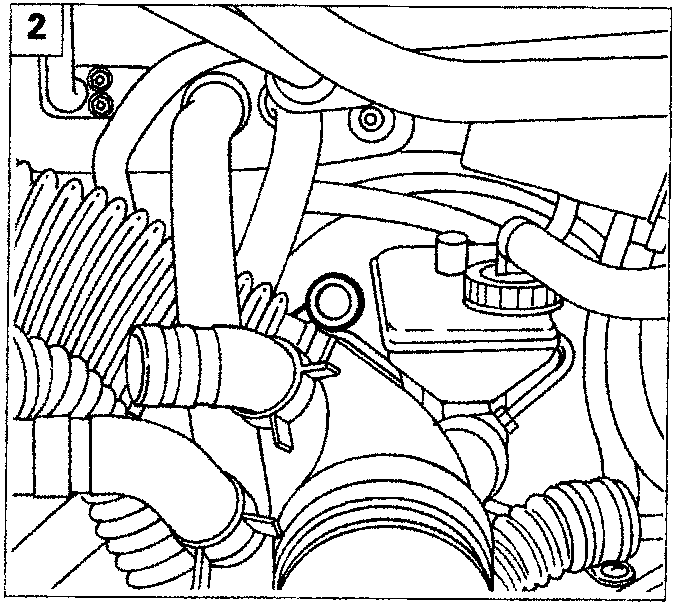

Diagram showing brake servo vacuum pipe and surrounding components in the engine bay

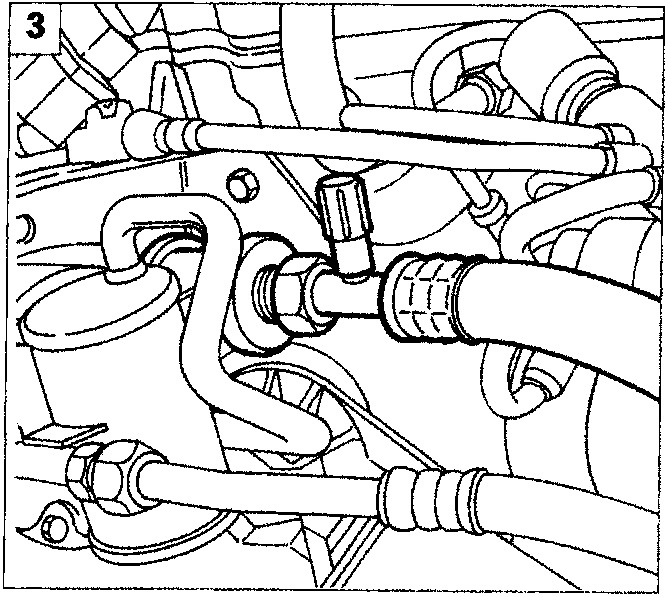

Diagram showing fluid supply pipe union connection with up and down arrow icons
  1. remove the fuel inlet (1) and outlet (2) pipes from the butterfly casing;
  2. remove the brake servo vacuum pipe extracting it from its housing;
  3. undo the fluid supply pipe union from the evaporator;

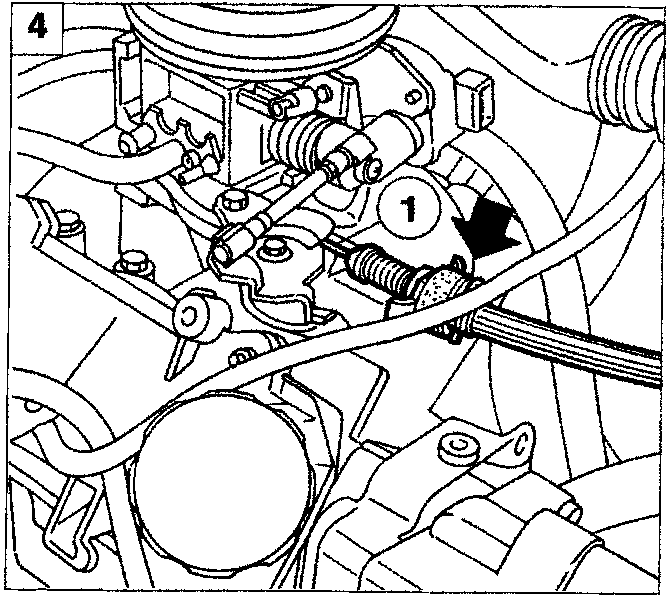

Diagram showing accelerator cable release point, metal wire (1) and rubber seal indicated by an arrow
  1. disconnect the accelerator cable, releasing it first from the metal wire (1) and then extracting the rubber seal (arrow) from the bracket;

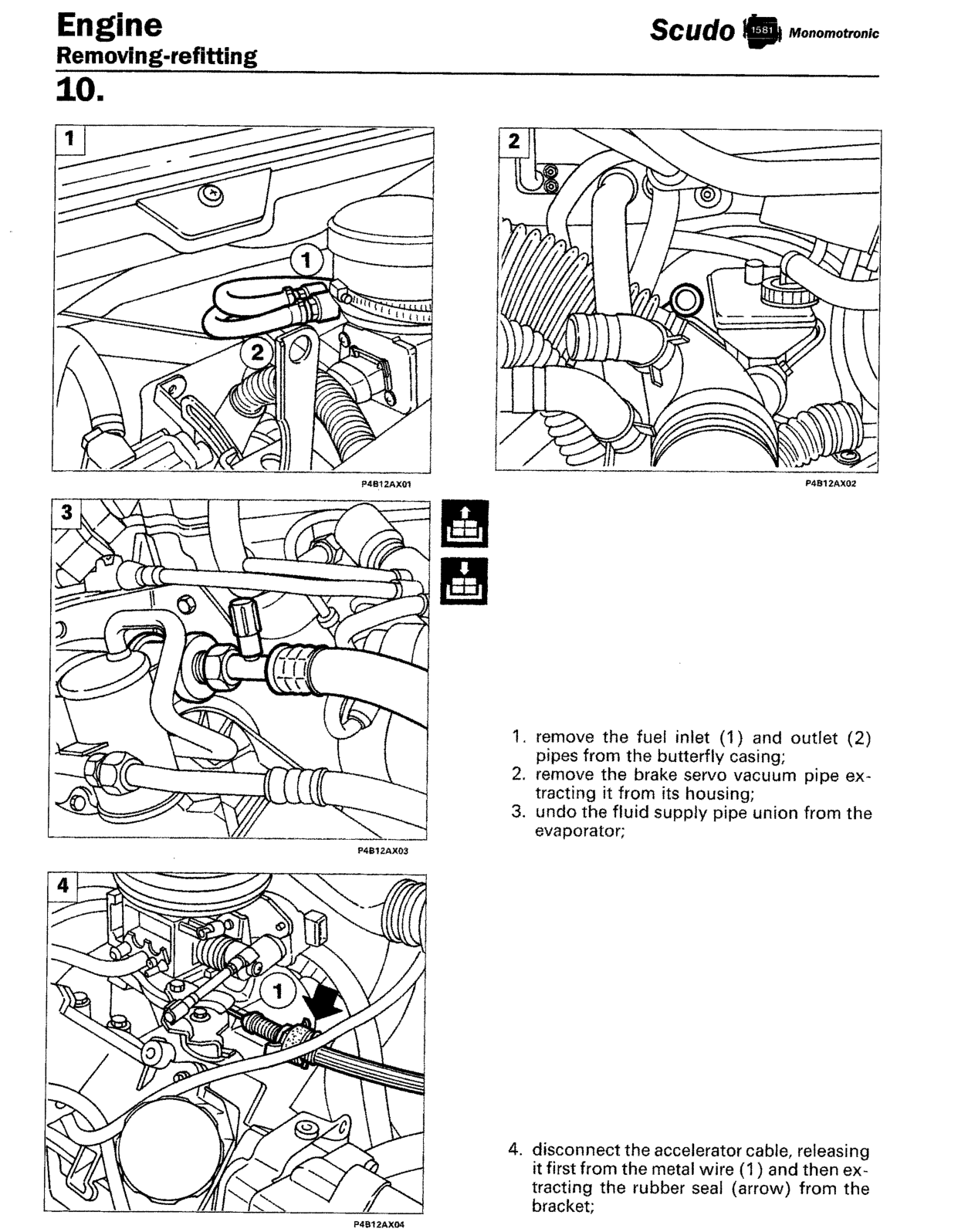

Original page
