Proceed with extracting the power unit working in two stages:

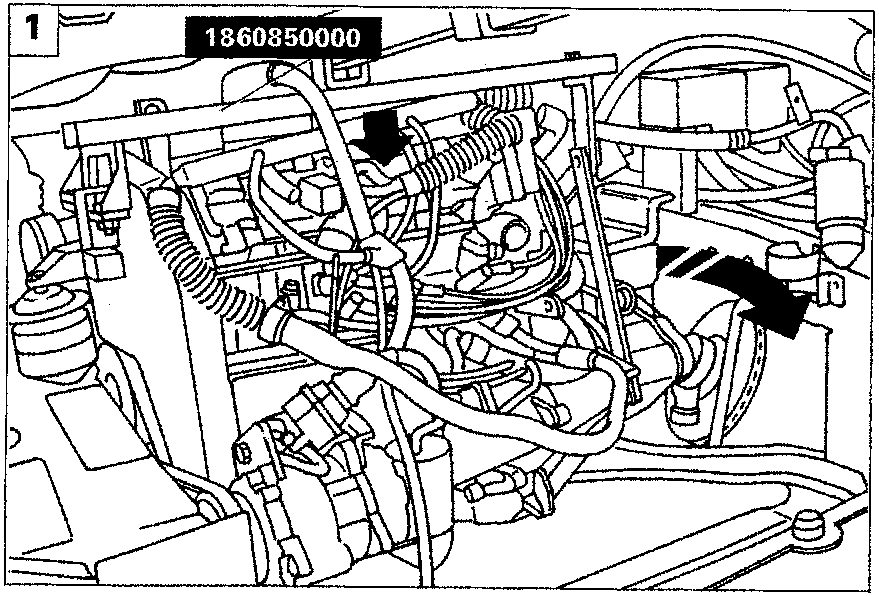

1. slightly lower the power unit until the left power unit mounting is released, then partly rotate the power unit in a clockwise direction;

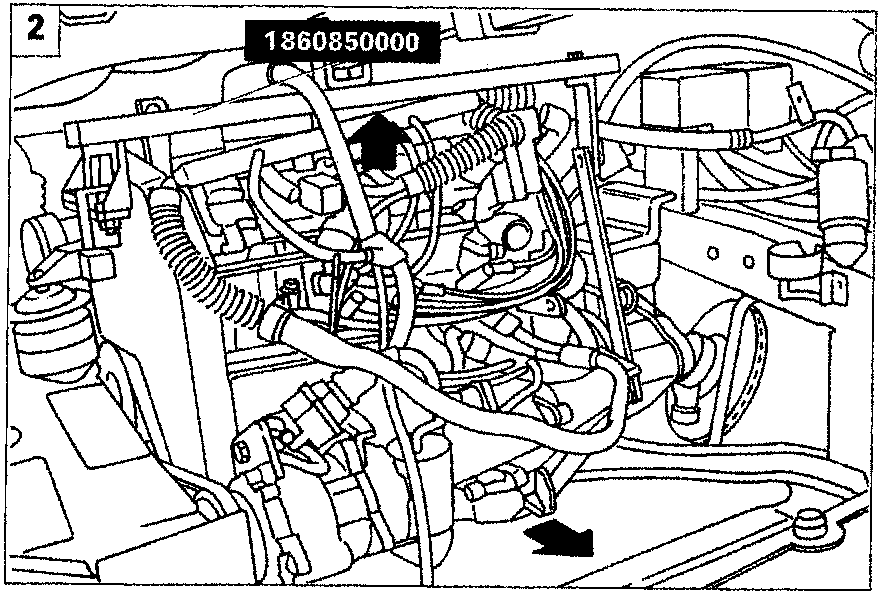

2. raise the power unit and, at the same time, extract it, avoiding impact with the windscreen base cross member and taking care not to spoil the air conditioning filter bracket whilst passing the front cross member;

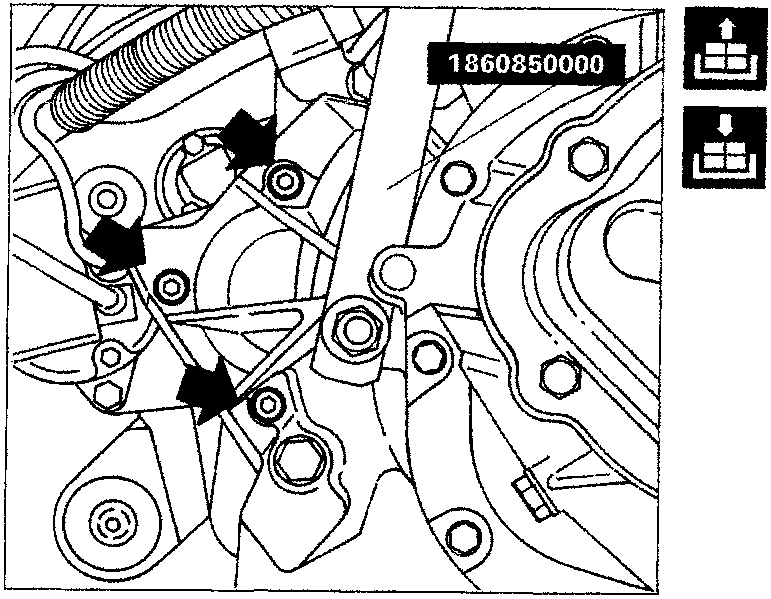

- undo the three fixing bolts (arrow) and remove the starter motor; also undo the two fixing nuts and remove the wiring support bracket and hot air pipe;
