Removing-refitting (1581 SPI)

10 EngineRemoving-refitting · page 4 of 17

Working on the left side of the vehicle, proceed as follows:

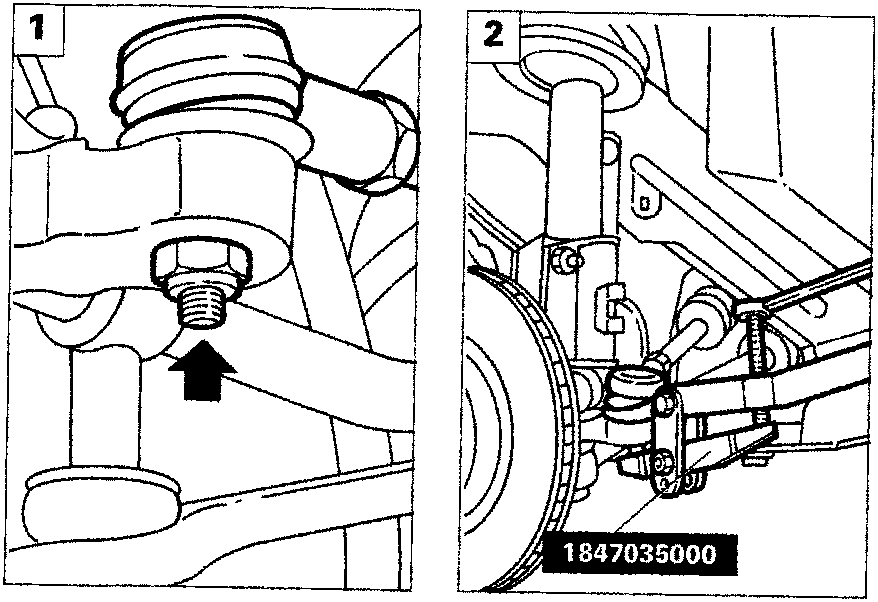

1. undo the nut (arrow) fixing the steering rod to the steering knuckle;
2. remove the steering rod from its housing using tool 1847035000;

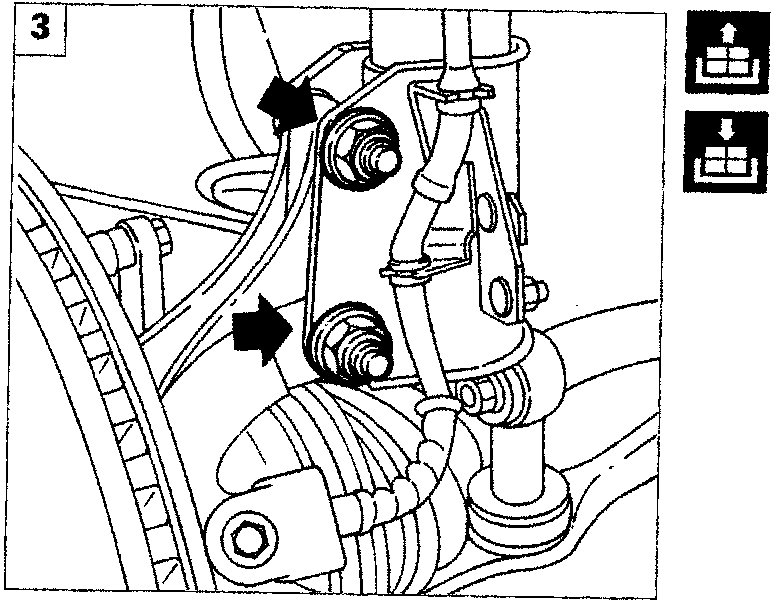

3. undo the bolts fixing the shock absorber to the steering knuckle;

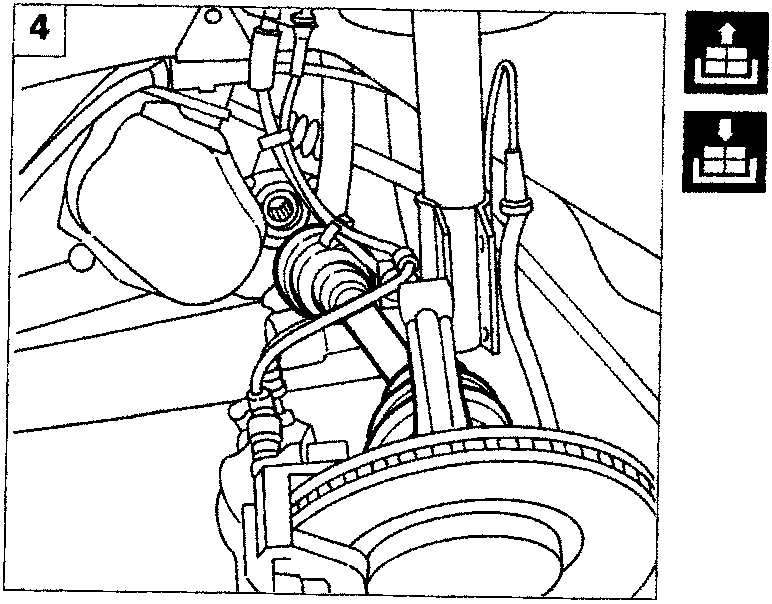

4. tilt the steering knuckle and remove the left drive shaft from the differential.
