Fiat Scudo Factory Service Manual (1996-2006)02 · 10 Engine
02 · Engine

Removing-refitting (page 14 of 17)

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Removing-refitting (1581 SPI)
10 EngineRemoving-refitting · page 14 of 17

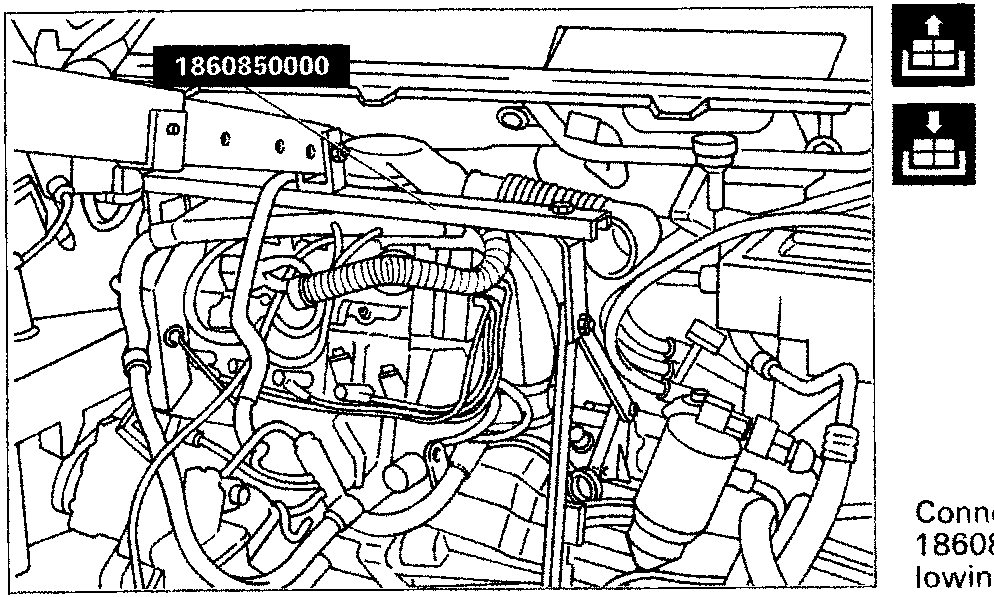

Diagram of engine bay showing hoist connection point labeled 1860850000

Connect the hoist to tool 1860850000, then carry out the following operations:

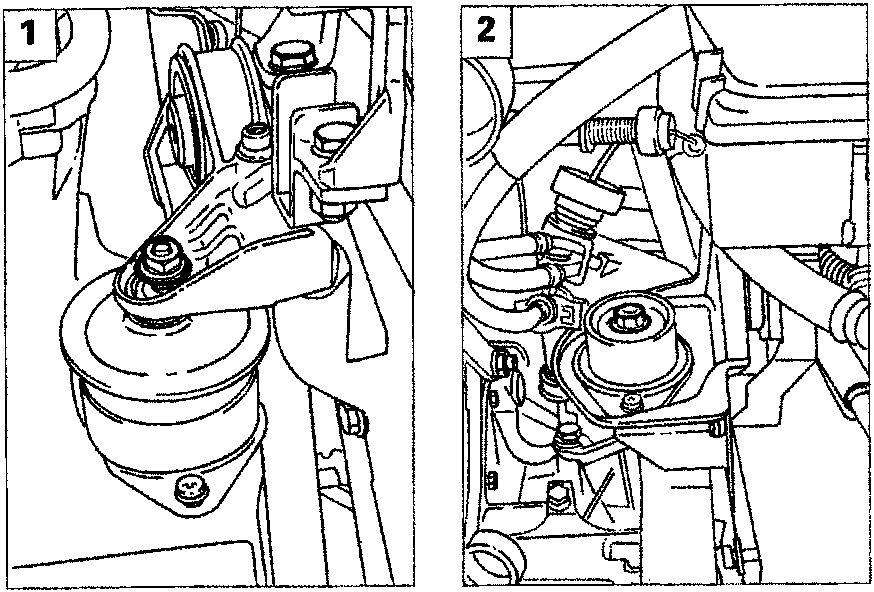

Two diagrams showing power unit mounting brackets and bolts, labeled 1 and 2
  1. loosen the bolt fixing the right power unit mounting bracket;
  2. place the lift under pressure to release the weight from the power unit mounting, then loosen the centre nut for the left power unit mounting;
  3. undo the two bolts (arrow) fixing the right power unit mounting to the bodyshell;
  4. undo the two bolts (arrow) fixing the left power unit mounting to the bodyshell.

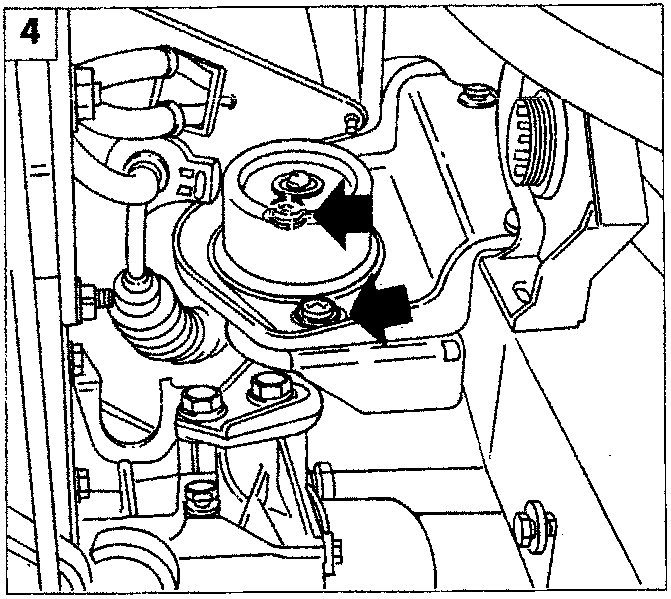

Close-up diagram of a power unit mounting with arrows pointing to two bolts

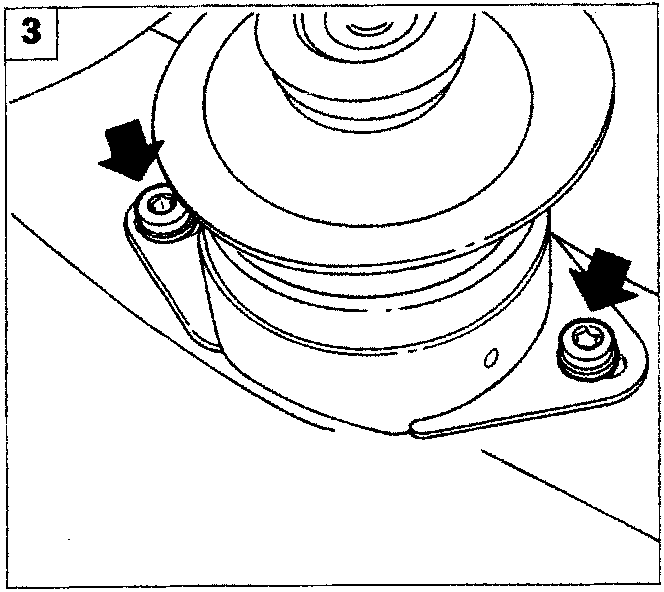

Close-up diagram of another power unit mounting with arrows pointing to two bolts
