Removing-refitting (page 13 of 17)

P4B16AX01

P4B16AX02

P4B16AX03

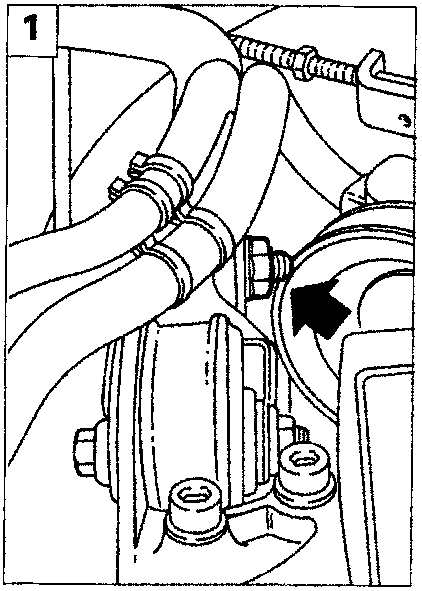

1. loosen the rear nut (arrow) for the right power unit mounting connecting rod;

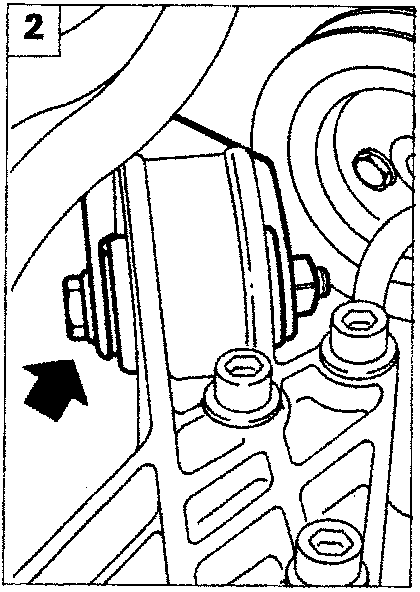

2. working via the right wheel arch, loosen the fixing bolt (arrow) releasing the connecting rod from the power unit mounting;

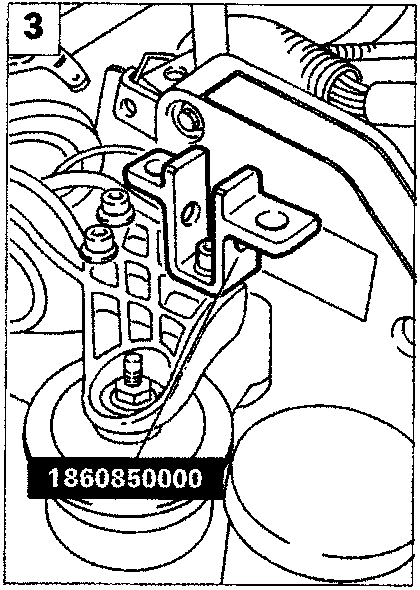

3. fit tool 1860850000 as shown in the diagram;

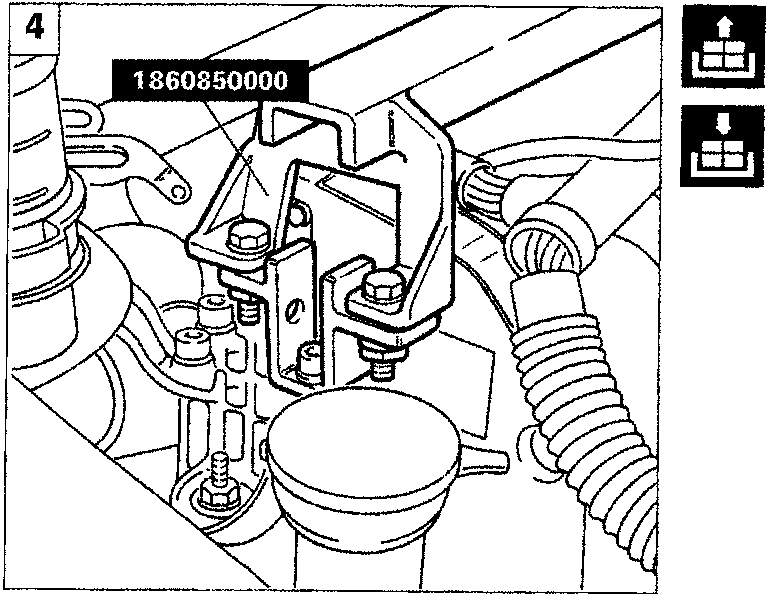

4. working on the right hand side, fix tool 1860850000 to the bracket;

P4B16AX04

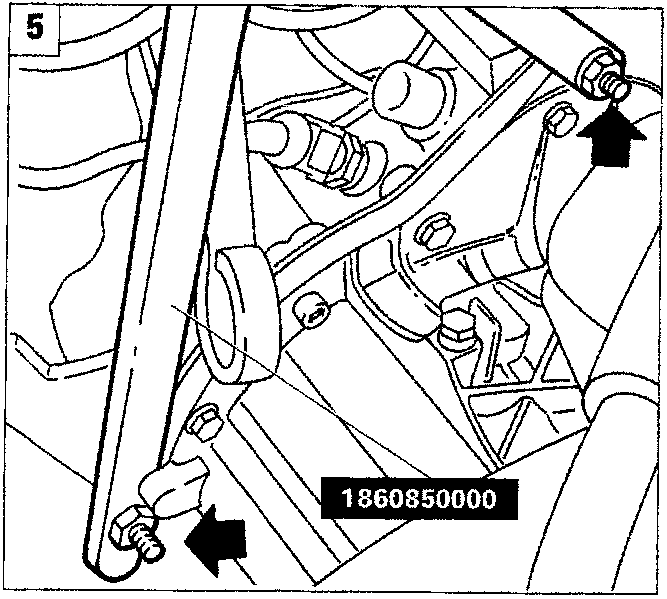

5. working on the left hand side, fix tool 1860850000 to the gearbox casing using the two bolts (arrow).

P4B16AX05
