Removing-refitting (page 16 of 17)

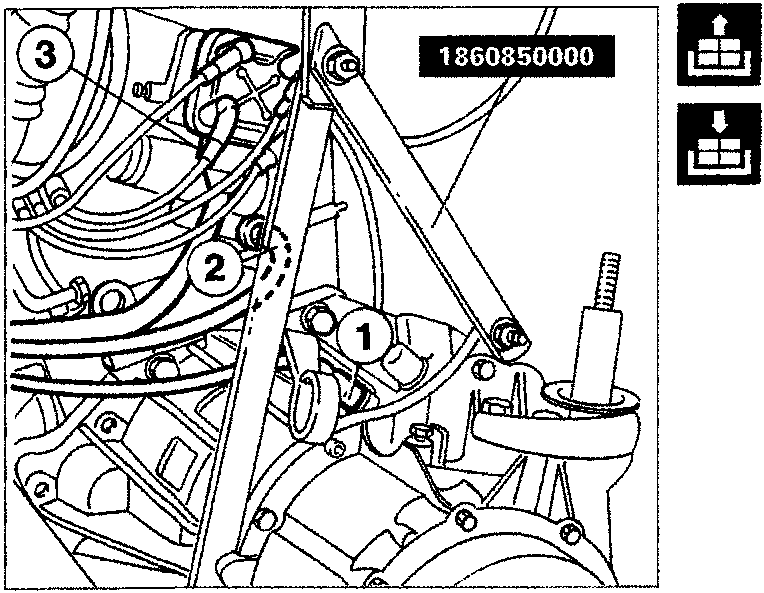

- keeping the assembly raised, disconnect the connectors for the reverse gear sensor (1), the coolant temperature sensor (2) and the coil (3) and move the mounting bracket away complete with cables;

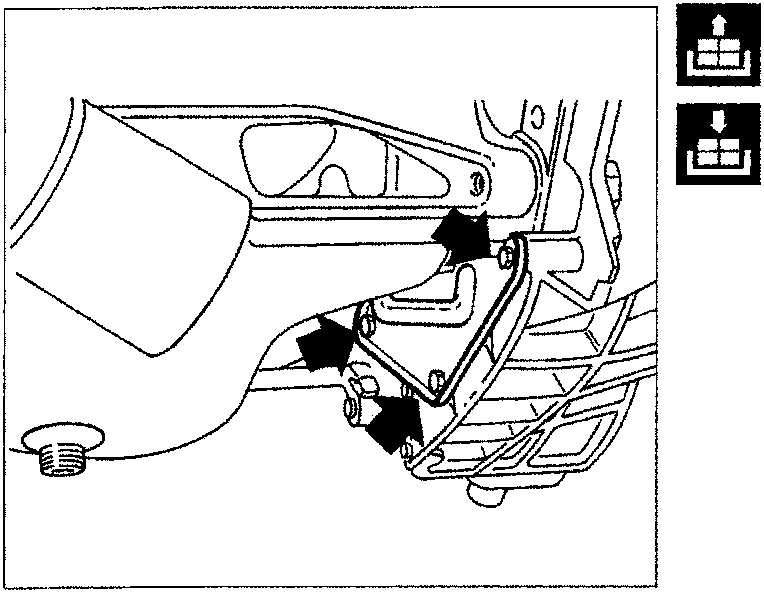

- undo the three fixing bolts (arrow) and remove the flywheel shield;

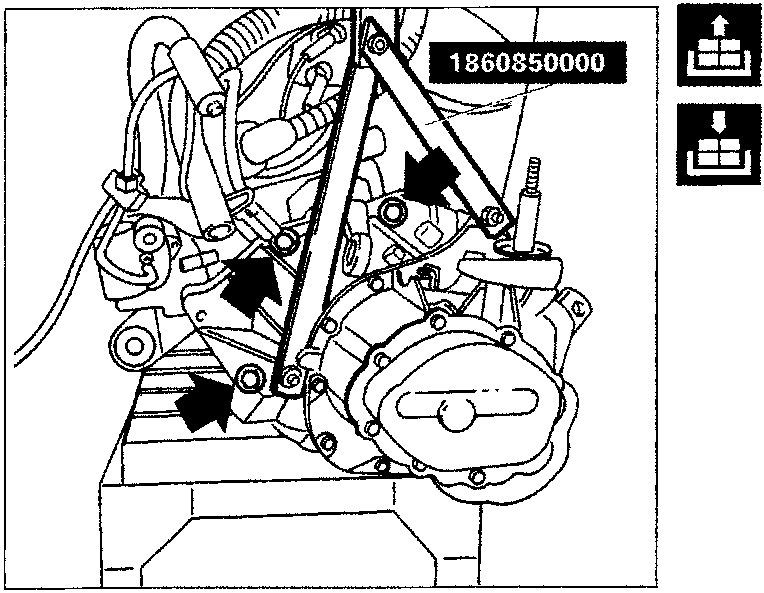

- rest the assembly on the board and proceed with the removal of tool 1860850000; - then undo the three upper bolts (arrow) fixing the clutch bell housing to the engine;
