Engine oil level gauge

Make: Fiat
Model: Scudo Factory Service Manual
Year: 1996–2006
Section: Control module (2000 range) › Engine oil level gauge

55 Electrical equipmentEngine oil level gauge

ENGINE OIL LEVEL GAUGE

The engine oil level gauge is located inside the maintenance indicator the oil level is displayed briefly when the engine is switched on

When the ignition key is turned on (M see page 4) after 5 seconds the indicator (A) and the min and max references light up the following conditions appear on the display (B) for 10 seconds

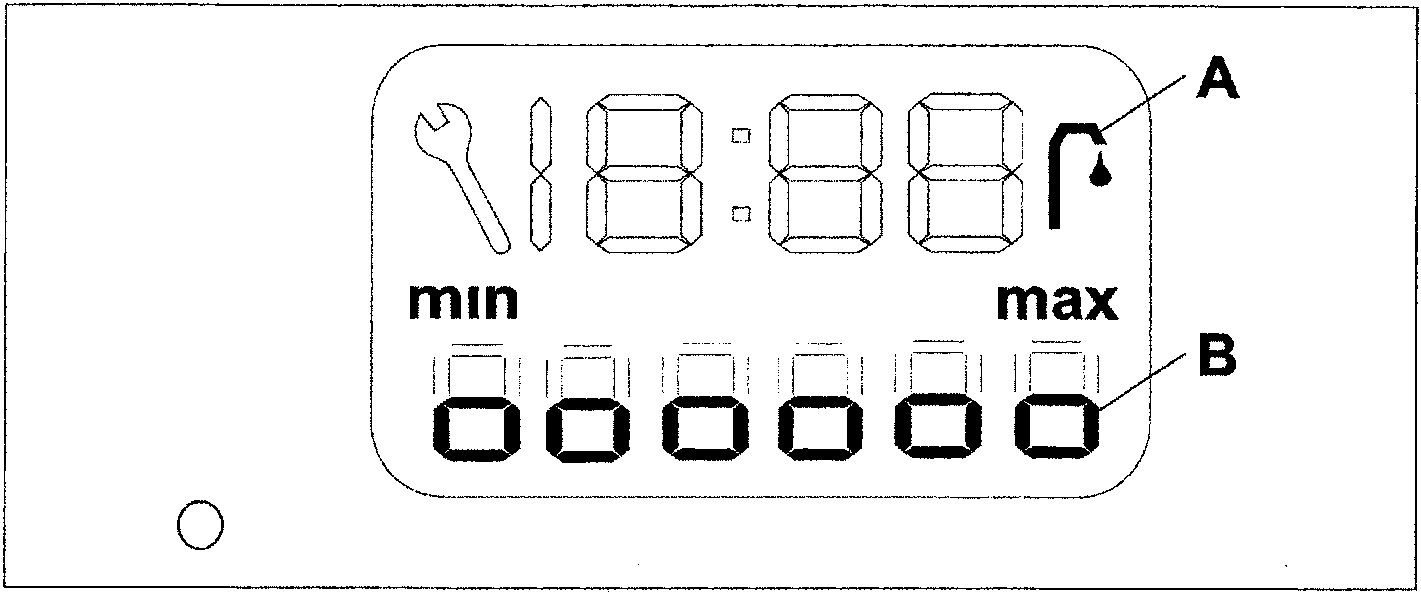

the oil level is maximum when 6 squares are lit up

Digital display showing a wrench icon, a digital readout of 88, an oil can symbol labeled A, and six illuminated squares below the labels min and max labeled B

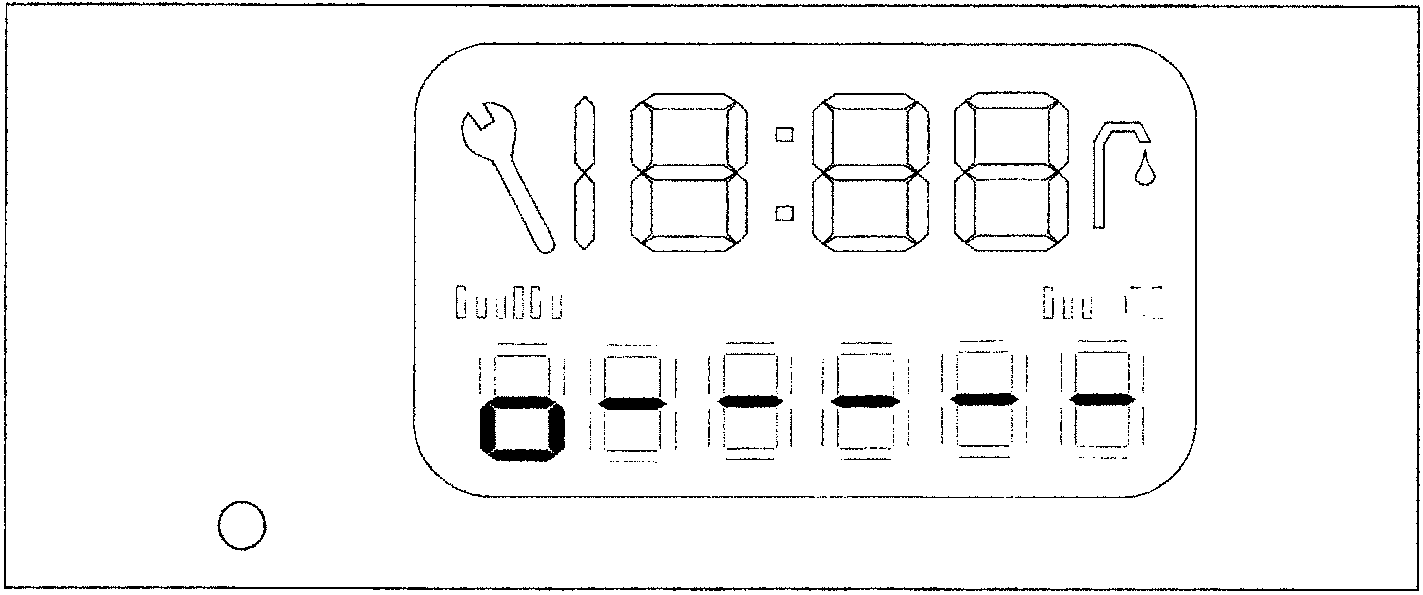

the oil level is minimum when 1 square is lit up

Digital display showing a wrench icon, a digital readout of 88, an oil can symbol with a drop, and one illuminated square on the far left with five unlit squares to its right
