55 Electrical equipmentIgnition switch

the oil level is below minimum when 6 dashes are flashing

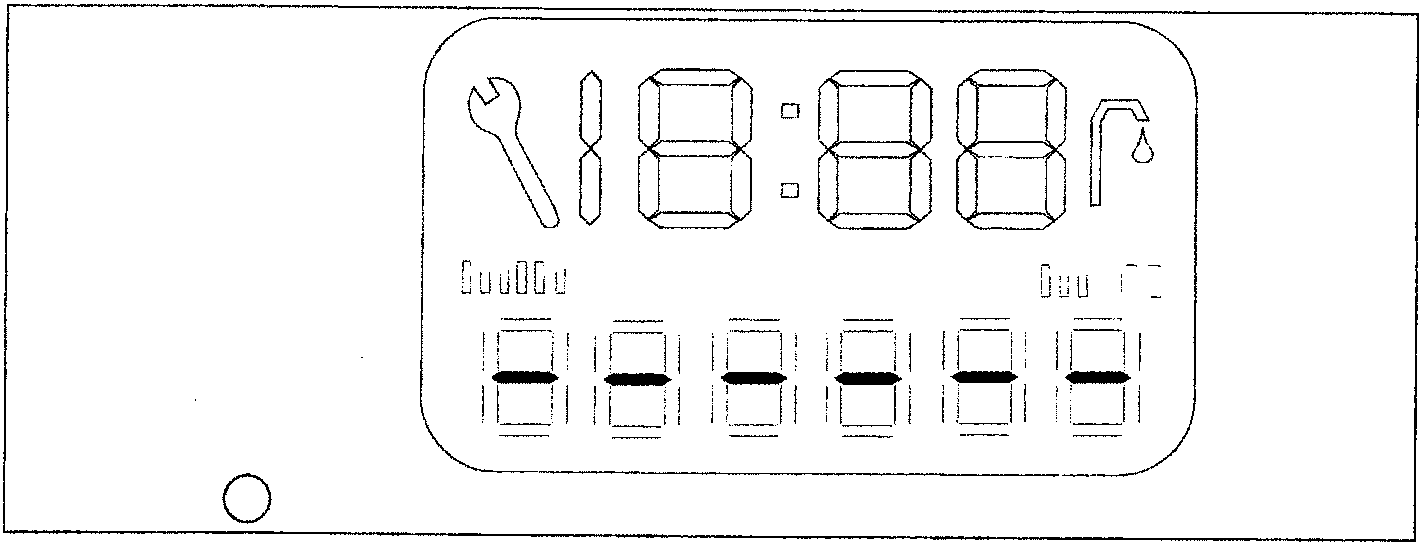

Diagram of the instrument display showing a wrench icon, digital time readout, and mileage digits with a circle indicator at the bottom left.

If the engine is started up during the measurement the instrument displays the total or trip mileage and the time By pressing button (C) it is possible to advance the conclusion of the measurement in this case the mileage and time are displayed

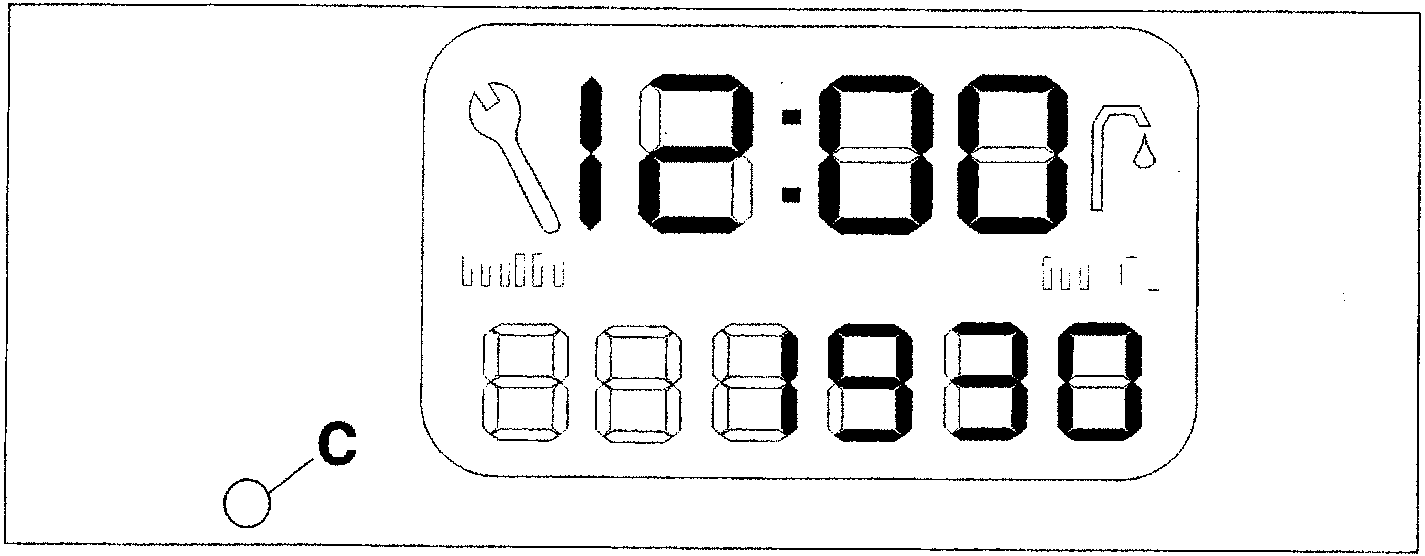

Diagram of the instrument display showing a wrench icon, digital time readout, and mileage digits with a circle labeled C at the bottom left.

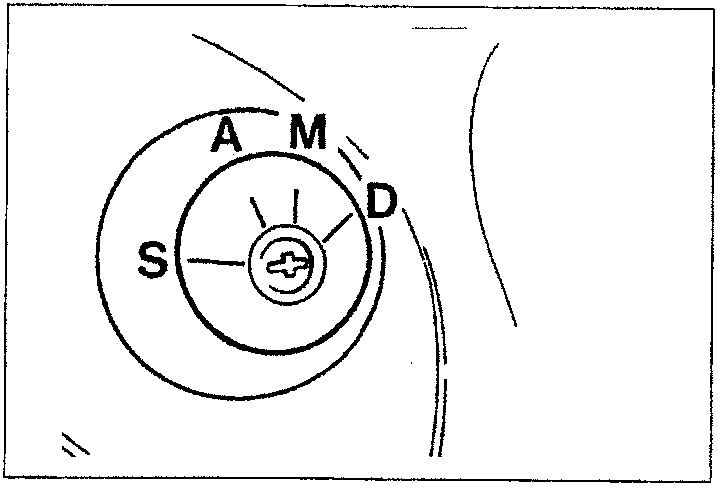

IGNITION SWITCH

S Engine switched off
A Waiting position
M Driving position
D Engine starting
