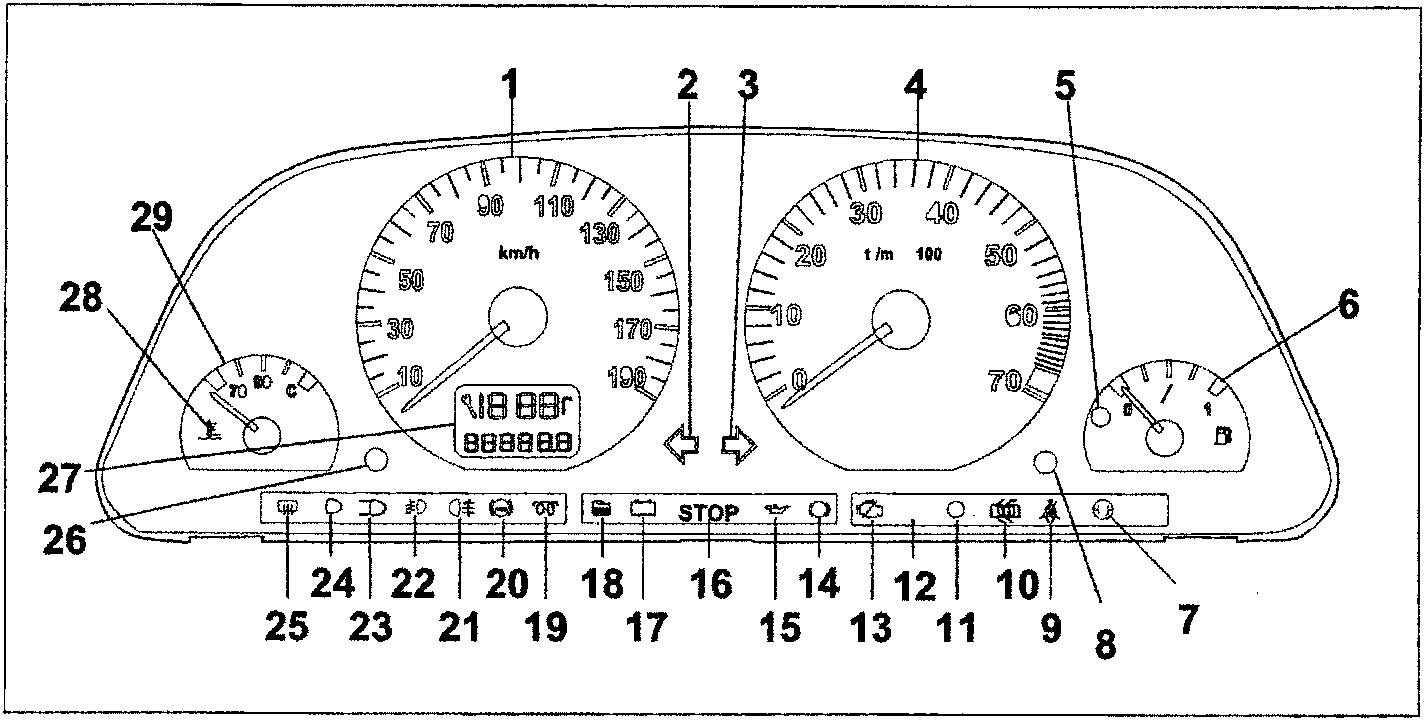

Front view

FRONT VIEW

KEY

1. Speedometer (4630)
2. Left direction indicator warning light (green) (V2320)
3. Right direction indicator warning light (green) (V2330)
4. Rev counter (4210)
5. Fuel reserve warning light (yellow) (V4300)
6. Fuel gauge (4310)
7. Water in fuel filter warning light (V4050)
8. Instrument panel light and clock settings adjustment button
9. Seat belt not fastened warning light (red) (V4730)
10. Doors ajar warning light (red) (V4700)
11. Brake pad wear warning light (yellow) (V4430)
12. AIR BAG sysetm failure warning light (yellow) (V6560)
13. Injection system failure warning light (yellow) (V1300)
14. Handbrake applied and brake fluid level warning light (red) (V4420)
15. Insufficient engine oil pressure warning light (red) (V4110)
16. General failure warning light (red) (V0004)
17. Battery recharging warning light (red) (V1000)
18. Insufficient engine coolant warning light (red) (V4010)
19. Heater plugs warning light (yellow) (V1150)
20. ABS anti lock brakes circuit failure warning light (yellow) (V7000)
21. Rear fog lamps warning light (yellow) (V2000)
22. Fog light warning light (yellow) (V2660)
23. Main beam headlamps warning light (blue) (V2620)
24. Dipped headlamps warning light (green) (V2610)
25. Heated rear windscreen warning light (yellow) (V8110)
26. Maintenance indicator/milometer/trip meter zeroing adjustment button
27. Maintenance indicator engine oil gauge milometer/trip meter clock (7220/4102)
28. Engine coolant overheating warning light (red) (V4020)
29. Engine coolant temperature gauge (4026)
