Connectors key
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Control units (99 update) › Connectors key
‹ Prev LOCATION OF FUSES AND RELAYS IN JUNCTION UNIT BF01-BMF1 (engine compartment) FOR VERSIONS WITH A.B.S.Next › Wiring diagram for interior of junction unit BMF1 (engine compartment)
55 Electrical equipmentConnectors key
4B062L01

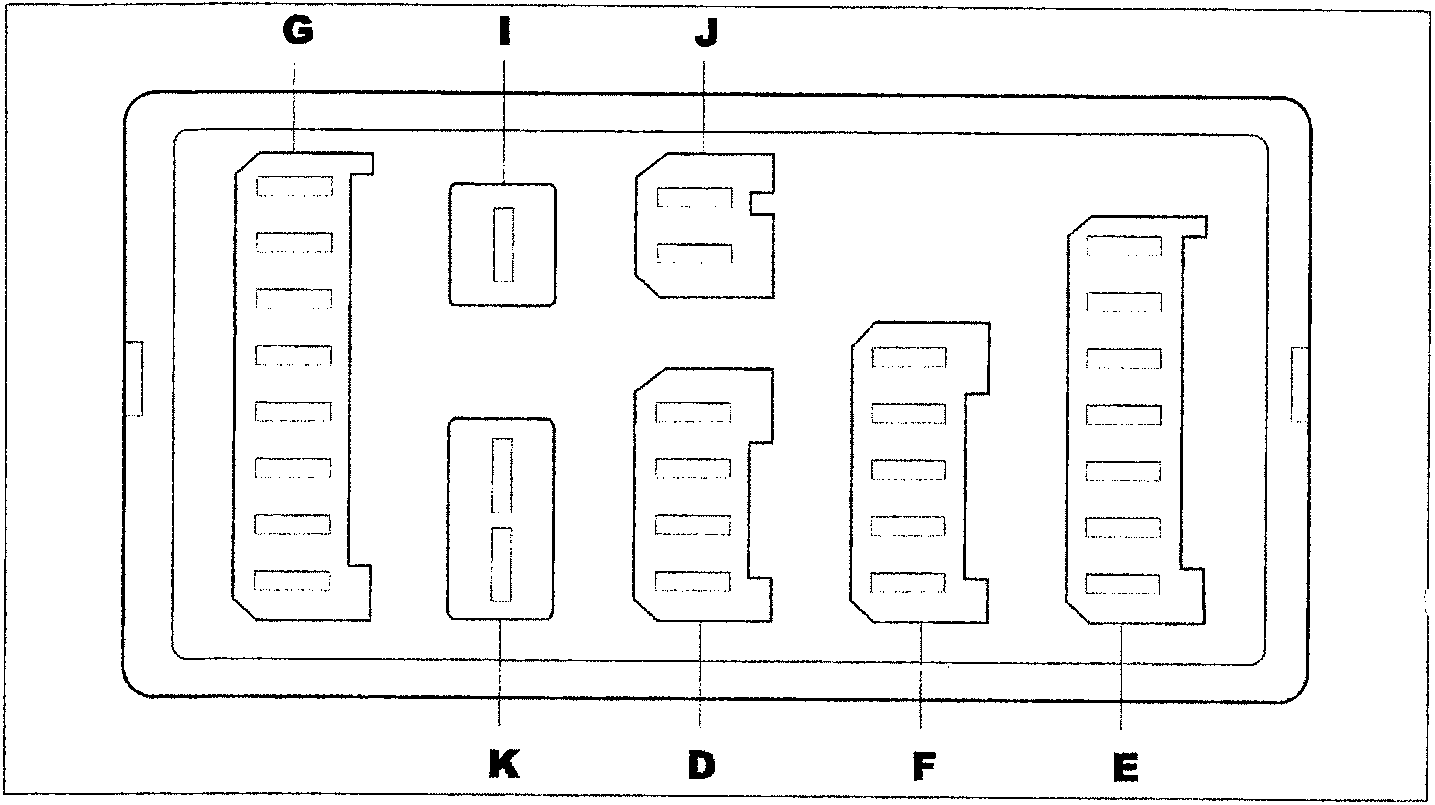

Connectors key
D - 4-way yellow connector
E - 7-way white connector
F - 5-way brown connector
G - 8-way white connector
I - 1-way black connector
J - 2-way white connector
K - 2-way black connector

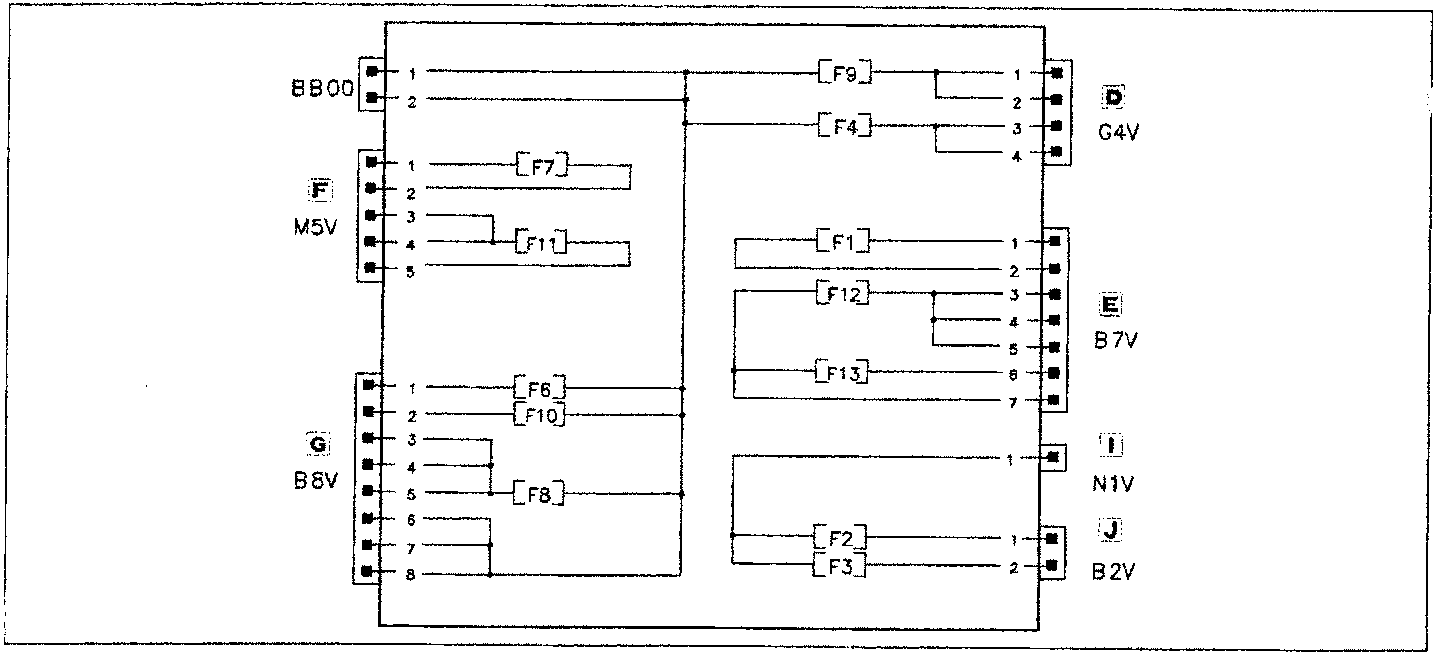

Wiring diagram of interior of junction unit BF01 (engine compartment)
4B062L02
